I recently got a new rack mountable case from Inter-Tech — it was surprisingly cheap 😃 This is going to be the new server case for my hypervisor Alpha. Here are my thoughts, and some photos.
Table of contents
Specifications
- Size
- 4U, 650mm deep
- Form factor
- Mini ITX, μATX, ATX, eATX, SSI EEB
- Manufacturer
- Inter-Tech
- Drive bays (mounting options)
- 3 × 5.25" external
- 11 × 3.5" internal
- 4 × 2.5" internal
- Fan mounting options
- 5 × 120 mm, front and internal
- 2 × 80 mm, back
Review
What I like
- Cheap
- Lots of space
- 5×120 mm and 2×80 mm fans included
- Internal fans are hot swappable and can be PWM controlled
- Two 5×3.5" disk bays
- Was able to replace the stock fans with Noctua
What I don’t like
- Stock fans are loud (but move a lot of air)
- The 5.25" rail mechanism feels a bit cheap and flimsy
- Had a hard time attaching 2×80 mm Noctua fans. Had to grind off a screw thread on the case and modify one of the Noctua fans

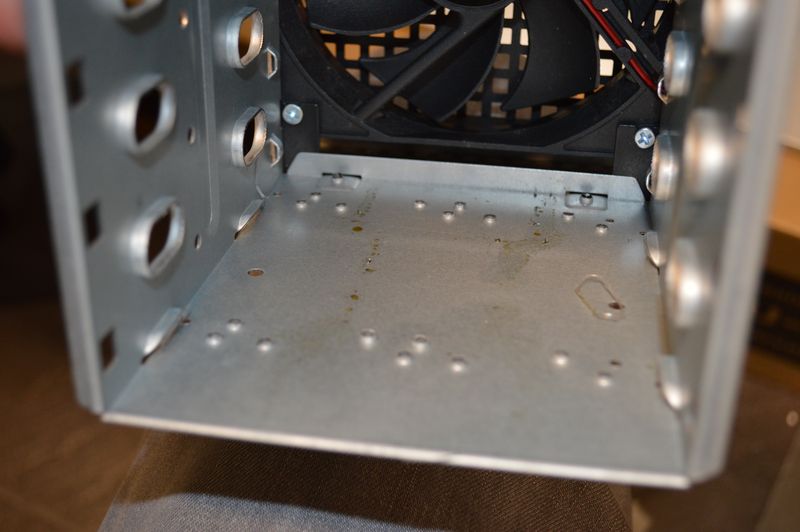

- One of the disk bays had some oil like substance on it

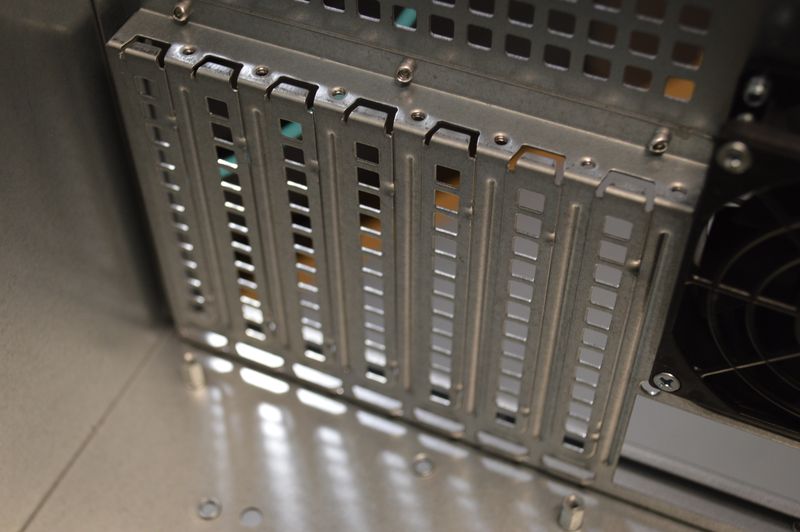

- Break-away expansion slot cover plates
Fans
I replaced all stock fans with Noctua.

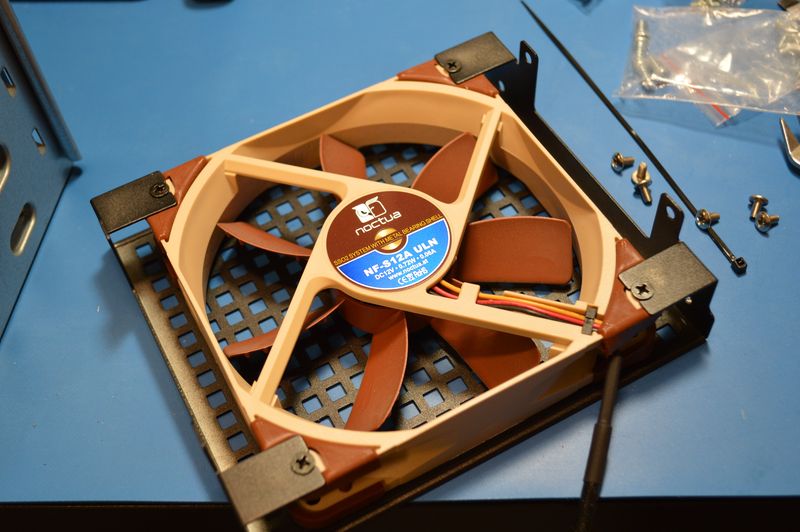

Front fans
No modifications required.
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191101-223144_hue6d540d434bb5711f574dd3d77cc6b73_747622_800x0_resize_q80_lanczos.jpg)

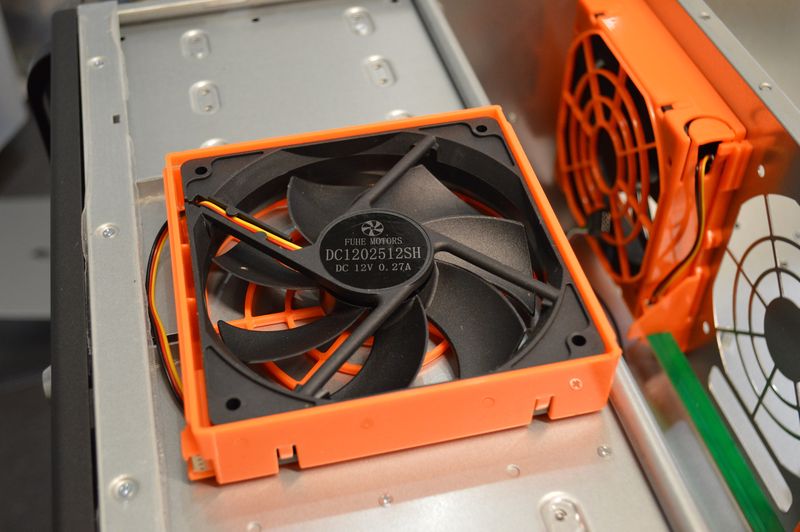

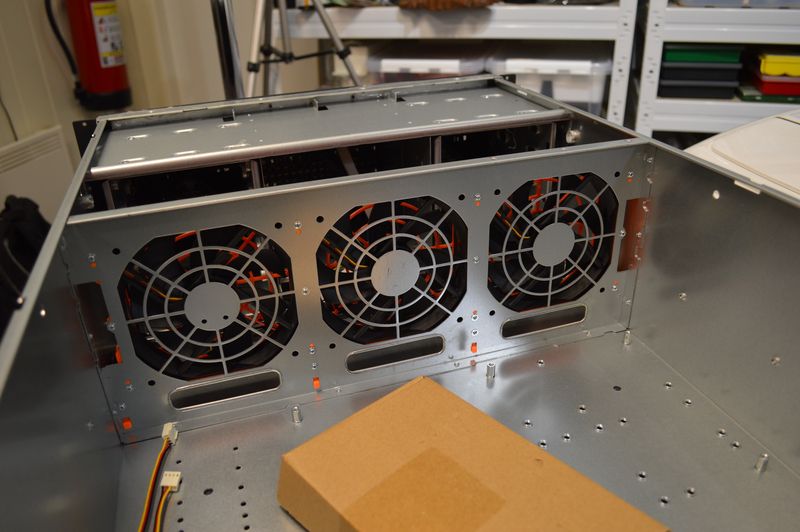

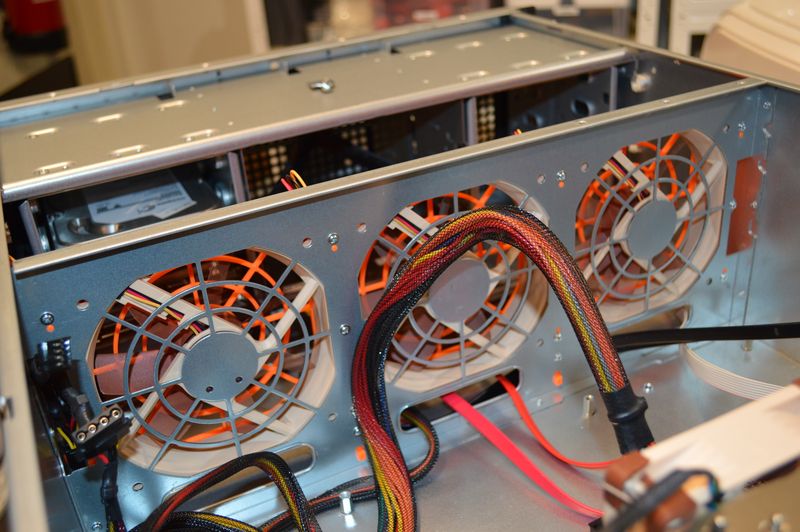

Internal fans

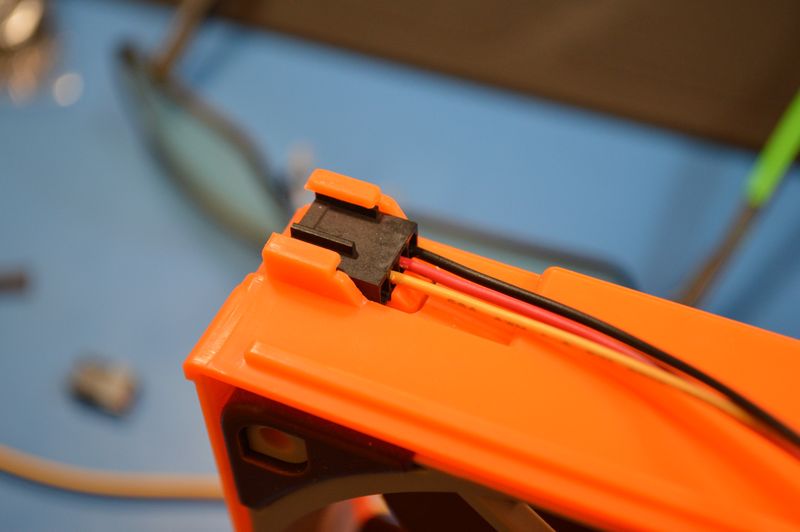

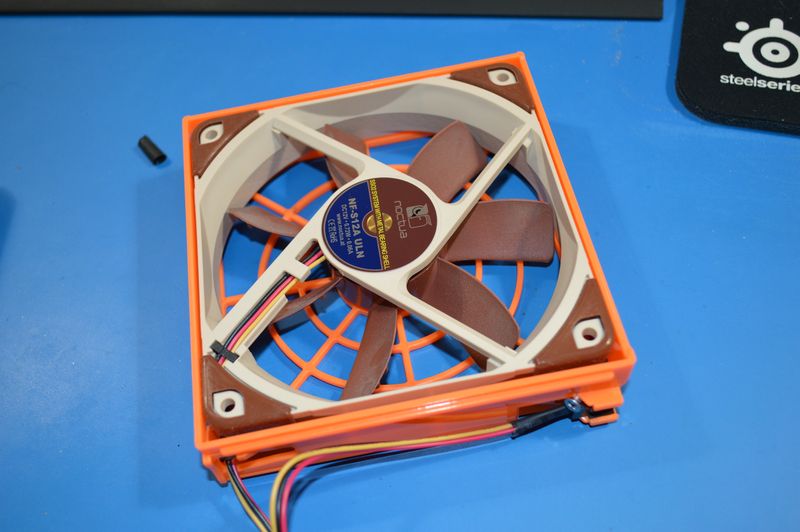

120 mm Noctua fans fit perfectly in the hot swap brackets. But they will need a 4-pin header to be able to fasten it, mine had 3-pin but I was able to replace the fan header.
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191102-000831_hua373fa40db850511bb43f0745bc4fb44_683380_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20200105_224316_hub7063020e1b396d9307632f5913f5c23_578196_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20200105_225853_hub7063020e1b396d9307632f5913f5c23_751272_800x0_resize_q80_lanczos.jpg)

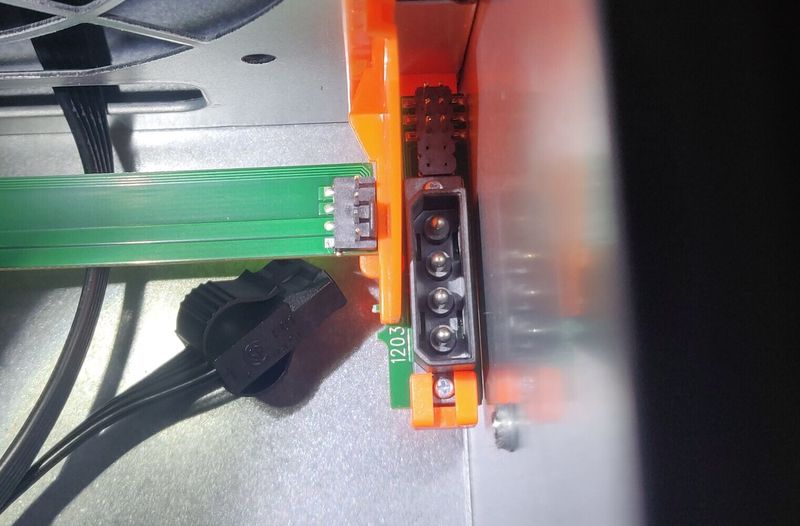

Internal fans PWM control
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/inter-tech-case-fan-header_hu33d37a85f6623561b98356cdff5a147c_319753_800x0_resize_q80_lanczos.jpg)

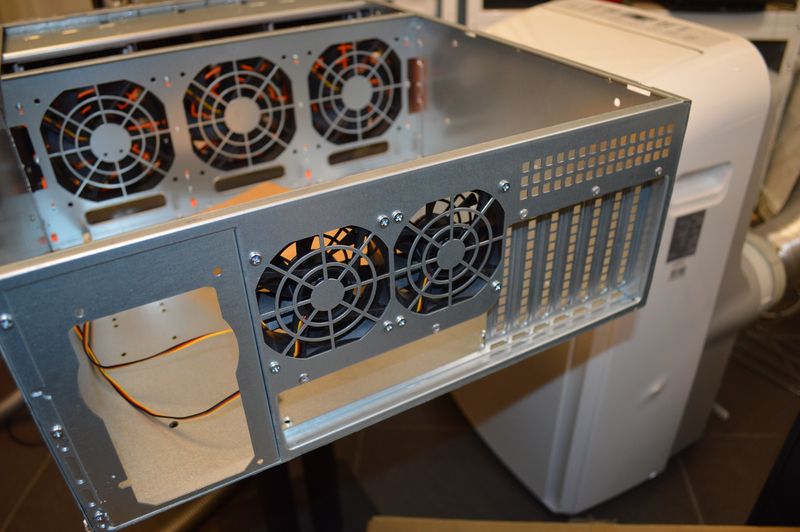

Back fans

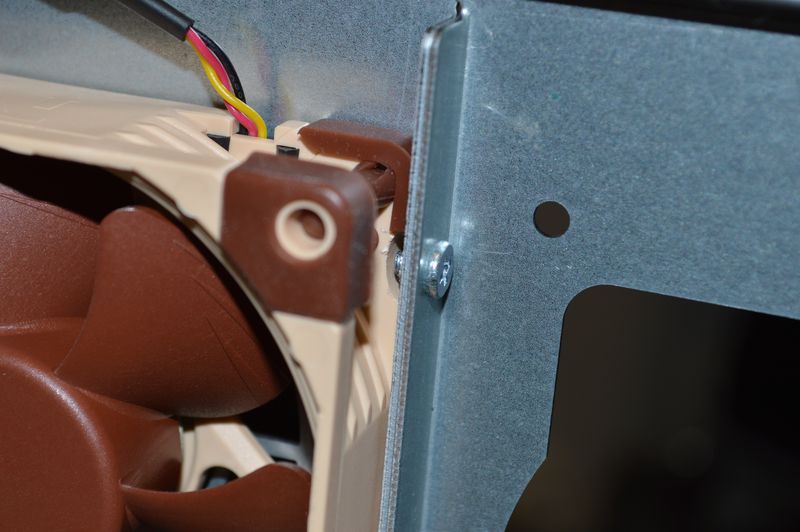

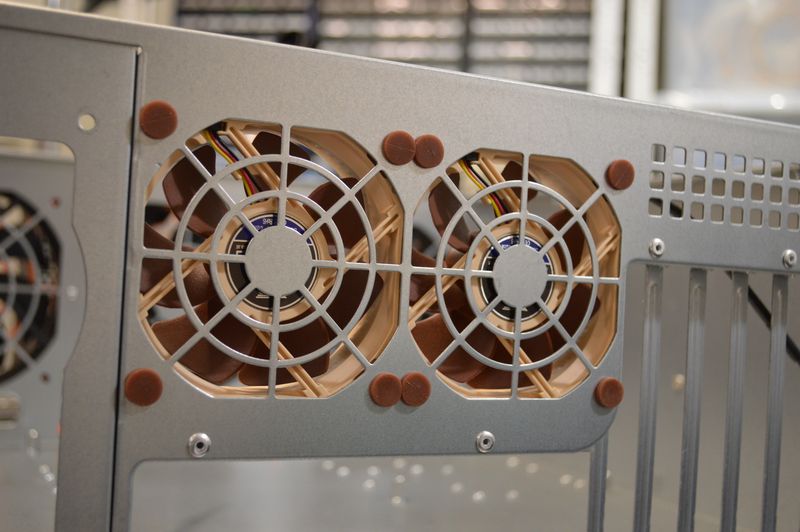

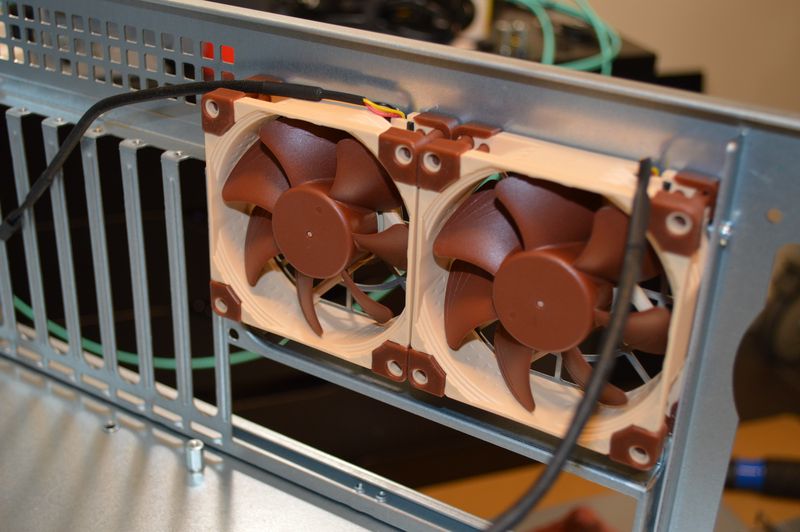

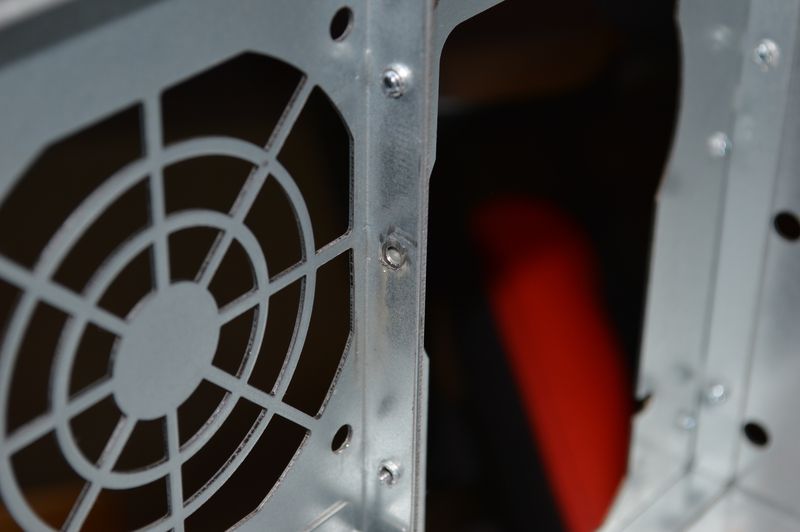

The two 80 mm Noctua fans in the back was a tight fit, I had to grind off a screw thread and make a groove in the right Noctua fan.
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191101-212558_hufdafbe0100302a3e3e39af35f2387dcc_459666_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191101-213731_hu6f3b709b924ddd016edfe7678dfec8d4_767547_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191101-213622_hu42eec13e302a97b7959e89b8c8c38585_680413_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191101-213631_hu90fc033da0b602110b71db1a8e42792c_709076_800x0_resize_q80_lanczos.jpg)

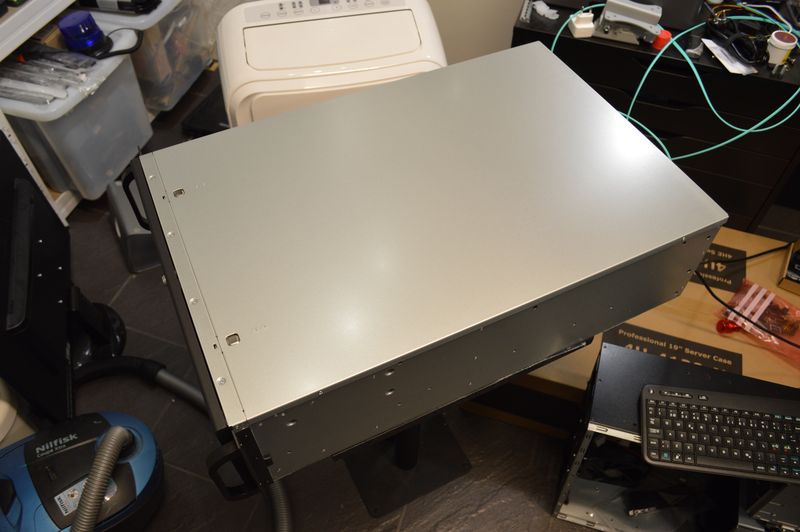

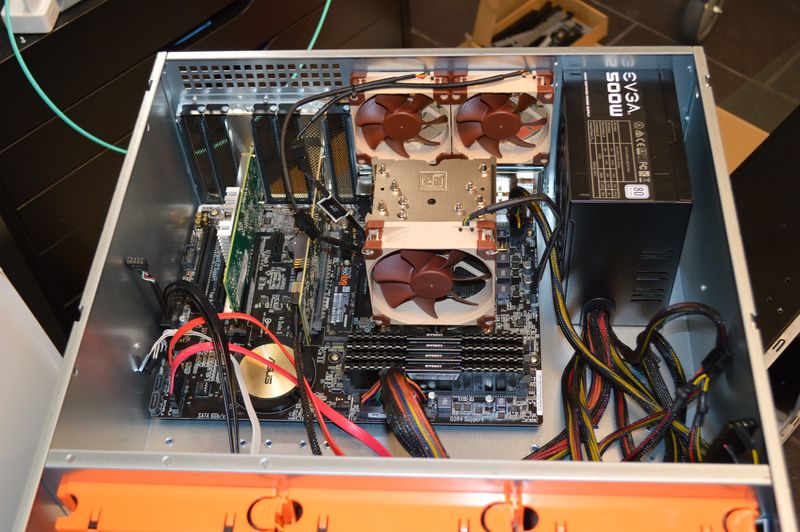

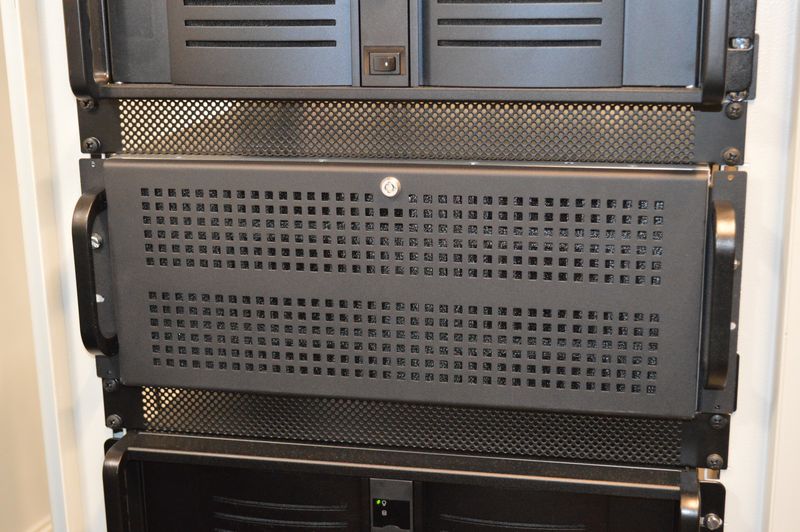

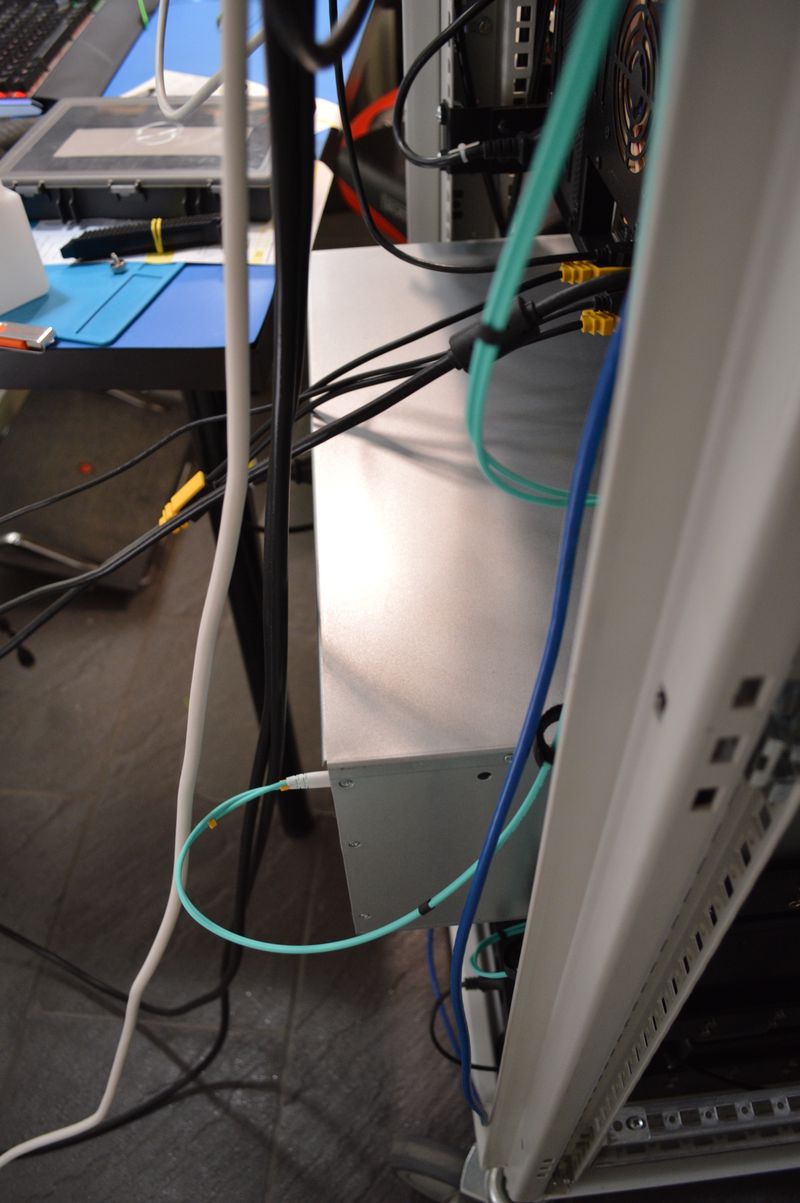

More photos
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191009-200302_hu2aabdfb32e42789832441ad9500be7b4_509633_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191009-221755_hud3a957b2a7aa7d3bace48f0a44fcd4ab_695418_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191009-221800_hu345e3601849c48141896c9d137c007db_679461_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191009-221811_hu73318310de7c0c3f34f282aaddf25970_533975_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191009-221846_hu8c48d34479fd95e89461672107149ce2_710343_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191009-221856_huf5130e87d9d51d76a3ceaef6a49c61d3_666256_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191009-222523_huf26edc6e544bddc9e852050b24ab62ad_616447_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191009-223723_huf2b0149ac275a95d24fd0de22210f143_601114_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191101-215208_hu398198baf68a83458ad448de5fd2422b_762613_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191101-220341_hu8a20810f0e09db5e69c3252f5b749840_691300_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191101-221614_hu5bf153f42eea3d6ca1999c1a427e5436_504191_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191101-221706_hu3e5007545dd00d1744935c086ab9944d_622482_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191101-221816_hudf53985b1f94f28d095b867dbec3d99e_633522_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191101-224447_hu96d0a7ff5cf5e0f5c8edfa2eb0bc3ee0_722192_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191101-230417_hue8c861e6c4695c179acc70b84c7bfd2b_665312_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191101-232530_huf7dec315e96c69fab89a5d59df04b30d_719445_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191101-232538_huf62b58d9238a9bd424b7734608b80d7c_706765_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/cover_hu696afc73c88c844f5f69a36b1811a954_640615_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191102-013950_hu6b24d5446fe67b9b2671aba6cfe577d2_605408_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191102-015438_hu46f91d0799a8d656a5f2269989a6ec8f_672160_800x0_resize_q80_lanczos.jpg)
![](https://blog.cavelab.dev/2019/11/inter-tech-4u-4129-n/4u-4129-n-20191102-020323_hue1b4a195c686474bb83df268b724018c_617158_800x0_resize_q80_lanczos.jpg)
