In the fall of 2022 I turned off Zeta, my file server, due to the extreme price of electricity. I migrated all the data to a 3x18 TB raidz1 pool on Alpha instead.

But last year I brought it back β€” and used the opportunity to add some more memory, and rebuild the main storage pool 🤓

Table of contents

More memory

When I shut it down; Zeta had 24 GB memory; 2x4 GB + 2x8 GB. Since you can never have too much RAM with ZFS β€” I replaced all four sticks with 2x32 GB, giving it 64 GB. Which is the maximum that the Intel Pentium G4560 processor can handle.

Since Zeta is a pure file server, it doesn’t consume much memory β€” apart from ZFS. So; to put it to good use, I increased zfs_arc_max to 60 GB.

ZFS uses 50 % of the host memory for the Adaptive Replacement Cache (ARC) by default. For new installations starting with Proxmox VE 8.1, the ARC usage limit will be set to 10 % of the installed physical memory, clamped to a maximum of 16 GiB. This value is written to /etc/modprobe.d/zfs.conf.

β€” Proxmox Wiki

To make it permanent, I added an option in /etc/modprobe.d/zfs.conf:

$ echo $((60 * 2**30))
64424509440

$ sudo vim /etc/modprobe.d/zfs.conf
options zfs zfs_arc_max=64424509440

To verify the change after a reboot β€” we can look at /proc/spl/kstat/zfs/arcstats:

$ cat /proc/spl/kstat/zfs/arcstats | egrep "^c\s|^c_max\s|^size\s"
c                               4    60069475600
c_max                           4    64424509440
size                            4    60069024704
  • c is the target size of the ARC in bytes
  • c_max is the maximum size of the ARC in bytes
  • size is the current size of the ARC in bytes

β€” https://superuser.com/a/1137417

Looks good! c_max is equal to the zfs_arc_max we set. And ~55 GB is already in use 👍

ZFS pools

Before turning Zeta off; I wasn’t happy with the ZFS pool layout. But with no practical way to migrate the data, there wasn’t much I could do about it.

But now, having migrated all the data, it was time to change things up! 🤘

Main pool

Zeta originally had 16 disks, two vdevs striped into one large pool: 8x4 TB and 8x8 TB. Giving me a total of 72 TB usable space. 16 disks is a lot of disks β€” and the main reason the server was idling at 135 W.

I sold the 8x4 TB disks, and set up a new temporary pool with 8x8 TB disks in raidz2. Then moved all the data from Alpha β€” into this temporary pool.

This freed up the 3x18 TB disks in Alpha β€” which I used, together with 3 new IronWolf Pro 16 TB disks, to set up a 6 disk raidz2 pool. Before finally moving the data off the temporary pool onto it’s final location 🙂

Zeta migrating data between ZFS pools

Before, with 16 disks, 4 and 8 TB in two vdevs; I had 72 TB usable space.

Now, with 6 disks, 16 and 18 TB in a single raidz2; I have 64 TB usable space. That is 10 disks fewer, but only a reduction of 8 TB usable space. That is pretty damn good 🙂

  pool: tank0
 state: ONLINE
  scan: scrub repaired 0B in 08:57:50 with 0 errors on Sun Jan 12 09:21:53 2025
config:

	NAME                                      STATE     READ WRITE CKSUM
	tank0                                     ONLINE       0     0     0
	  raidz2-0                                ONLINE       0     0     0
	    ata-TOSHIBA_MG09ACA18TE_xxxxxxxxxxxx  ONLINE       0     0     0
	    ata-TOSHIBA_MG09ACA18TE_xxxxxxxxxxxx  ONLINE       0     0     0
	    ata-TOSHIBA_MG09ACA18TE_xxxxxxxxxxxx  ONLINE       0     0     0
	    ata-ST16000NE000-2RW103_xxxxxxxx      ONLINE       0     0     0
	    ata-ST16000NE000-2RW103_xxxxxxxx      ONLINE       0     0     0
	    ata-ST16000NE000-2RW103_xxxxxxxx      ONLINE       0     0     0

errors: No known data errors

Why 6 disks and not 8? I thought a lot about this before setting up the pool:

  • Two more disks would have cost significantly more, and used more power
  • I don’t really need that much space, I only had 36 TB on Alpha
  • 6 disks in raidz2 means 4 data disks, resulting in less allocation overhead according to this spreadsheet 👇
Screenshot of ZFS overhead calculation sheet

Pool settings

My new main pool, tank0 was created with ashift=12 (4KiB block size) and the following settings:

Name atime recordsize compression xattr sync
tank0 off 128K lz4 sa standard
tank0/media off 1M lz4 sa disabled
tank0/vault off 128K lz4 sa standard
  • atime=off: Do not update atime on file read
  • recordsize=128K: Standard usage (mixture of file sizes)
  • recordsize=1M: Recommended for large files
  • compression=lz4 : Set compression to use the lz4 algorithm (default)
  • xattr=sa: Store Linux attributes in inodes rather than files in hidden folders

β€” ZFS Tuning Recommendations

sync is disabled on the media dataset to increase the write performance. The dataset doesn’t contain any unique data, but I haven’t had any problem β€” yet 🤞

Backup pool

With the data migrated off the 8x8 TB temporary pool, I removed six disks, and added two 128 GB SSDs and a 32 GB Intel Optane NVMe.

I made a 8 TB mirrored pool, with the SSDs as a mirrored special device, and the Intel Optane as SLOG. I’m using this as a datastore for Proxmox backup, and backups in general (like ZFS snapshots using send/receive).

  pool: backup0
 state: ONLINE
  scan: scrub repaired 0B in 01:08:14 with 0 errors on Sun Jan 12 01:32:16 2025
config:

	NAME                                               STATE     READ WRITE CKSUM
	backup0                                            ONLINE       0     0     0
	  mirror-0                                         ONLINE       0     0     0
	    ata-TOSHIBA_HDWG180_xxxxxxxxxxxx               ONLINE       0     0     0
	    ata-TOSHIBA_HDWG480_xxxxxxxxxxxx               ONLINE       0     0     0
	special
	  mirror-1                                         ONLINE       0     0     0
	    ata-SAMSUNG_SSD_830_Series_xxxxxxxxxxxxxx      ONLINE       0     0     0
	    ata-SAMSUNG_MZ7TD128HAFV-000L1_xxxxxxxxxxxxxx  ONLINE       0     0     0
	logs
	  nvme-INTEL_MEMPEK1J032GA_xxxxxxxxxxxxxxxx        ONLINE       0     0     0

errors: No known data errors

I’m not sure how useful the SLOG is with the workloads seen on this pool, Proxmox backup and ZFS send/receive, more testing is required.

Based on the results; I might reassign the Intel Optane as SLOG on the main pool instead 🤔

Rack rails

As part of my project to rearrange the rack, I mounted proper rack rails and removed the shelf that Zeta has been resting on for the last five years.

This allowed me to move it down one rack unit (U), freeing up some precious rack space.

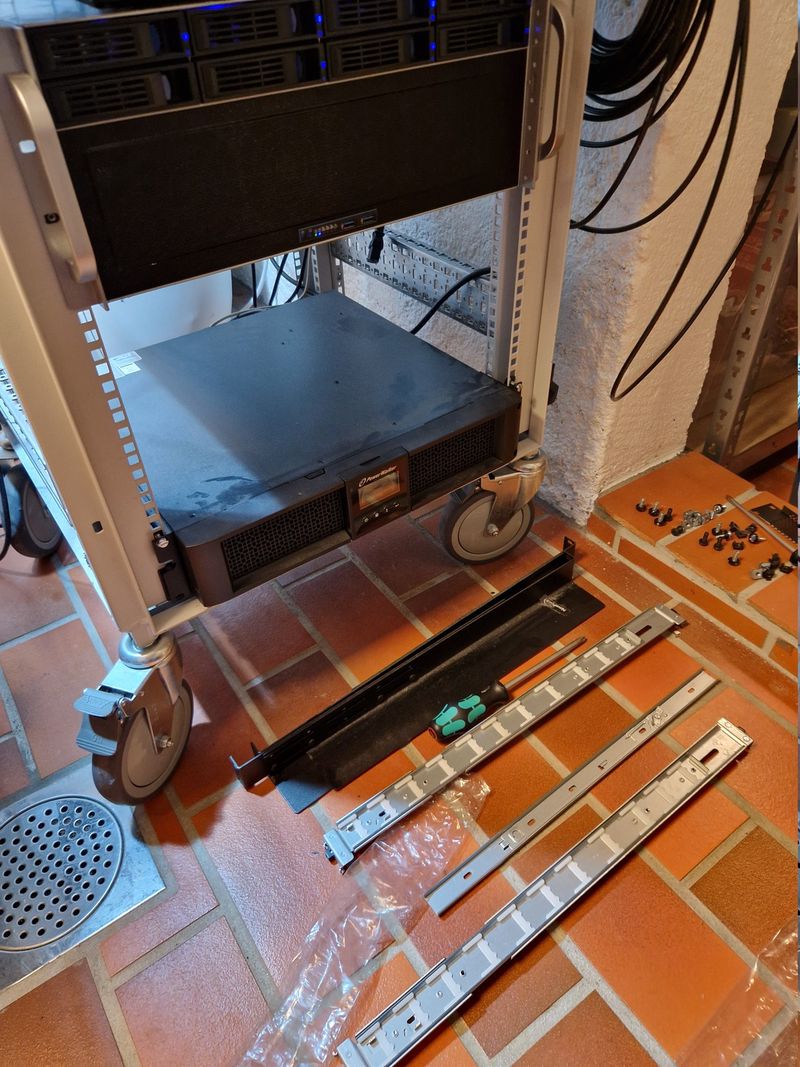

Zeta and rack shelf removed

The server case is Inter-Tech 4U-4416, and the rails:

IPC 2U TELESCOPIC SLIDES 455MM (88887221)

Telescopic Slides with variable installation depth of 500 to 800mm and max. load capacity 30kgs.

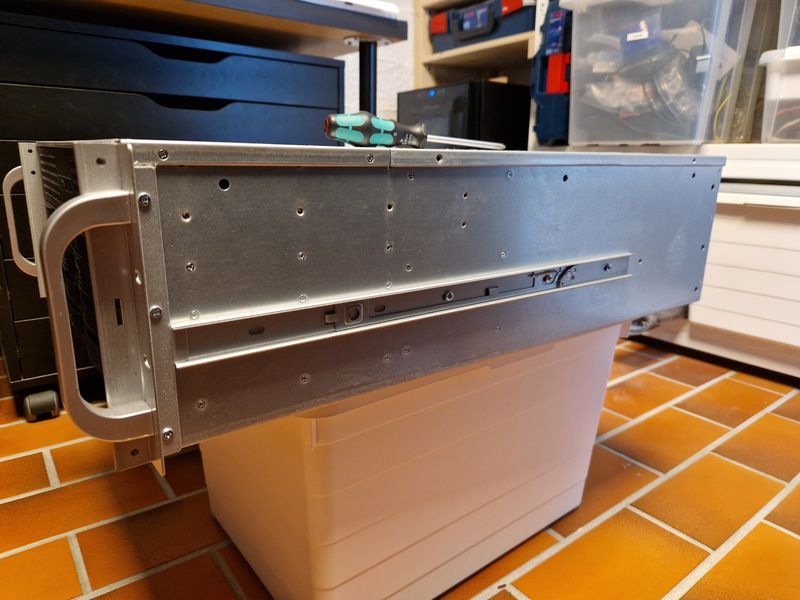

Rack rails on Zeta server case

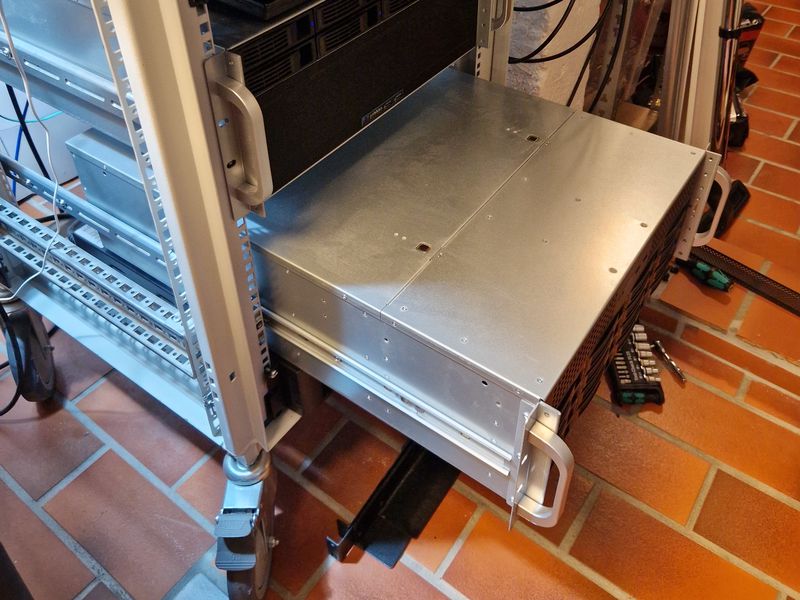

Zeta on rails β€” sticking out in front of rack

My server rack is 600x600 mm, and the server case is 688 mm deep… So the case sticks out about 9 cm behind the rack. Not really a problem β€” and the rails, with the variable depth, fit just fine 🙂

Zeta server case is too long for the rack

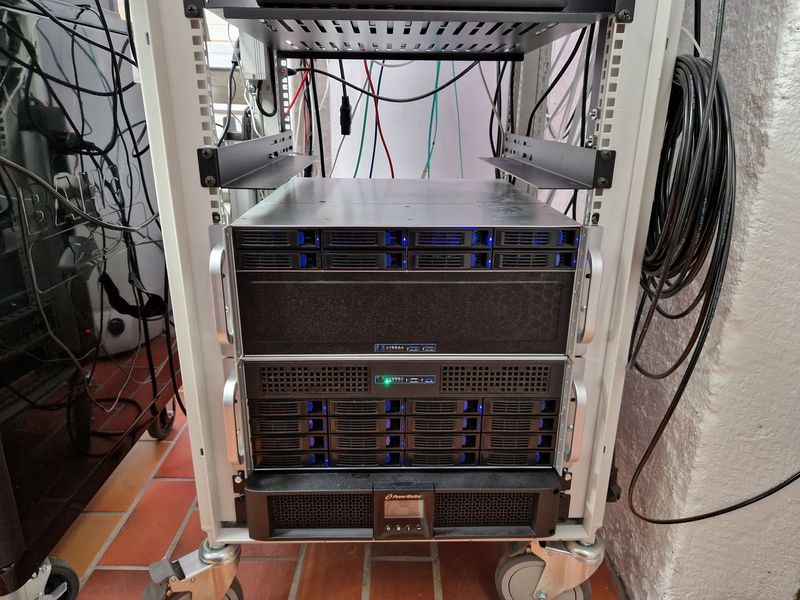

UPS, Zeta and Alpha, with no space in between

With Zeta moved down, followed by Alpha, the bottom 10 U are now completely filled β€” with no wasted space 😃

The shelf was mounted above Alpha β€” to be used for my new Z440 server. That server doesn’t have a rack mountable case, so no rack rails unfortunately.

Wrapping it up

I am very happy with the new ZFS pool layouts. Zeta is quieter, uses less power (although I haven’t measured how much), and has lots of storage capacity.

I still have six disk bays available, making it easier when a disk needs replacement β€” or if I want another pool in the future. I also have 6x8 TB disks to use for something fun.

The freed up rack unit means more room for other stuff 🥳

🖖
