Our house was first built as a log cabin in 1890, then extended in the 1950s, and again extended and completely renovated in 2000. It’s well insulated, and has no drafts β€” it seems to be relatively airtight.

Great for keeping the heat in, not so great for the air quality. Add the fact that we didn’t have a single fresh air vent, only those tiny trickle vents above the windows. What you are left with is a house with bad air quality.

So we installed a balanced ventilation system πŸ™‚

Table of contents

I’m only looking at COβ‚‚ here to determined the air quality. There are other factors; such as VOCs, radon, fungi, viruses, humidity, and more.

It’s an established benchmark test for indoor air quality to measure the COβ‚‚ levels, as it gives a goods indication of “air freshness”. And fresh air will also reduce all the factors listed above.

Before

We’ve had a Netatmo air quality sensor on the 2nd floor for about a year, and recently installed one in the 1st floor living room as well. We noticed that we had COβ‚‚ build up in the afternoon and evenings, and during the night. Except in the summer months, when windows on the 2nd floor are pretty much always open.

Grafana graph, COβ‚‚ levels last 1 year

My wife and I also noticed the air was especially bad in the twins' room, it felt hot and stuffy when we woke them up in the morning. But keeping the window open through the night would make the room too cold.

Another sign of lack of air was our fireplace windows, they kept turning black β€” over-production of soot is a sign of lack of oxygen. We solved this by keeping a window slightly open, but that made the floor cold. πŸ˜•

Fixing it

So we called a HVAC guy, with the intention of installing fresh air vents in all rooms. We had heard of some reversible vents, with ceramic heat exchangers that could recover the heat while keeping the air fresh.

He didn’t recommend them, on the basis that to be effective; they needed to run at high speed, making them noisy and annoying β€” especially in bedrooms.

Instead he asked if we had considered a balanced ventilation system, since we had room for it in the attic. We got a quote, and I spent many days, googling and reading up on ventilation and balanced ventilation systems.

I had so many questions; I emailed and called the poor HVAC guy a couple dozen times. He was patient, answered all of my questions, and gave some recommendations πŸ™‚

We agreed on:

  • Domekt R 400 H C6M unit (463 mΒ³/h)
  • Air supply
    • Kids' room 1
    • Kids' room 2
    • 2nd floor den
    • Master bedroom
    • 1st floor living room
  • Exhaust air
    • 2nd floor hallway
    • Bathroom
  • All vents with noise traps
  • All ducts with insulation

The unit we agreed on uses the C6 control system, which is pretty advanced; with things like Modbus TCP/IP πŸ‘

Preparations

Dedicated technical circuit in the attic

We had a spare fuse in the 2nd floor distribution board, and got an electrician to run a new circuit to the attic. This will be handy for my attic network rack as well πŸ™‚

New light in attic

To make it easier for the HVAC installers, and my future self; I installed more lights in the attic.

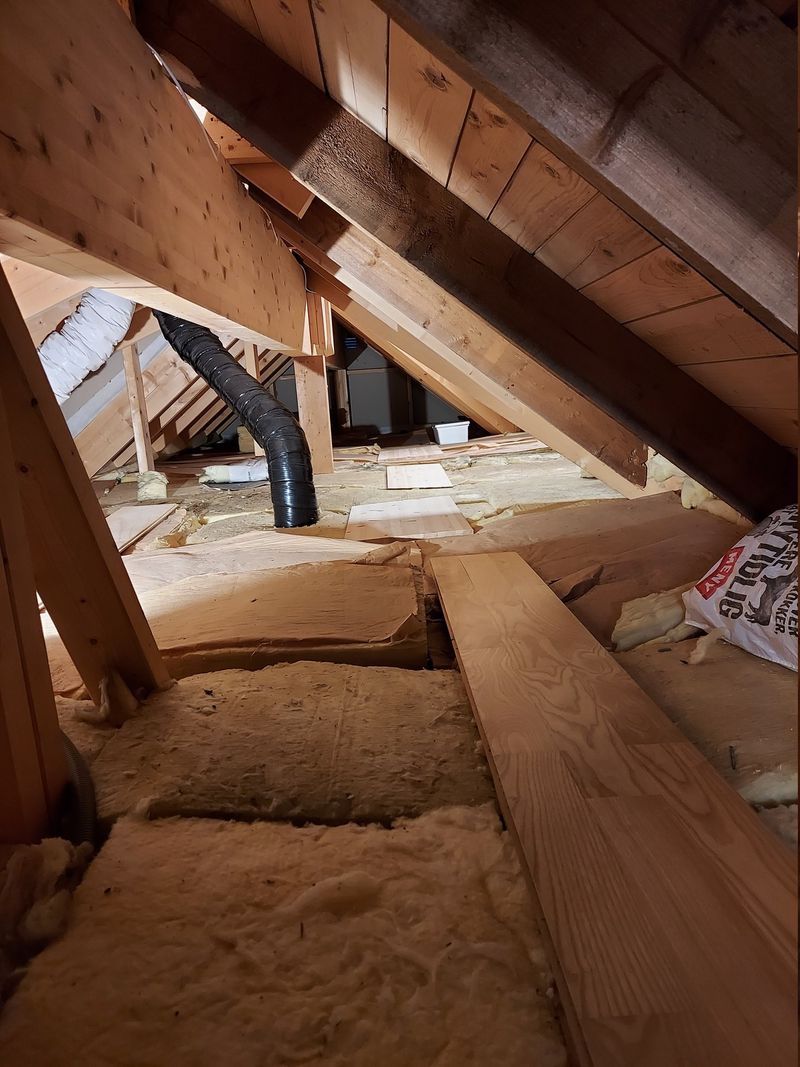

Our attic

I also laid out some boards and planks to make it easier to move around up there.

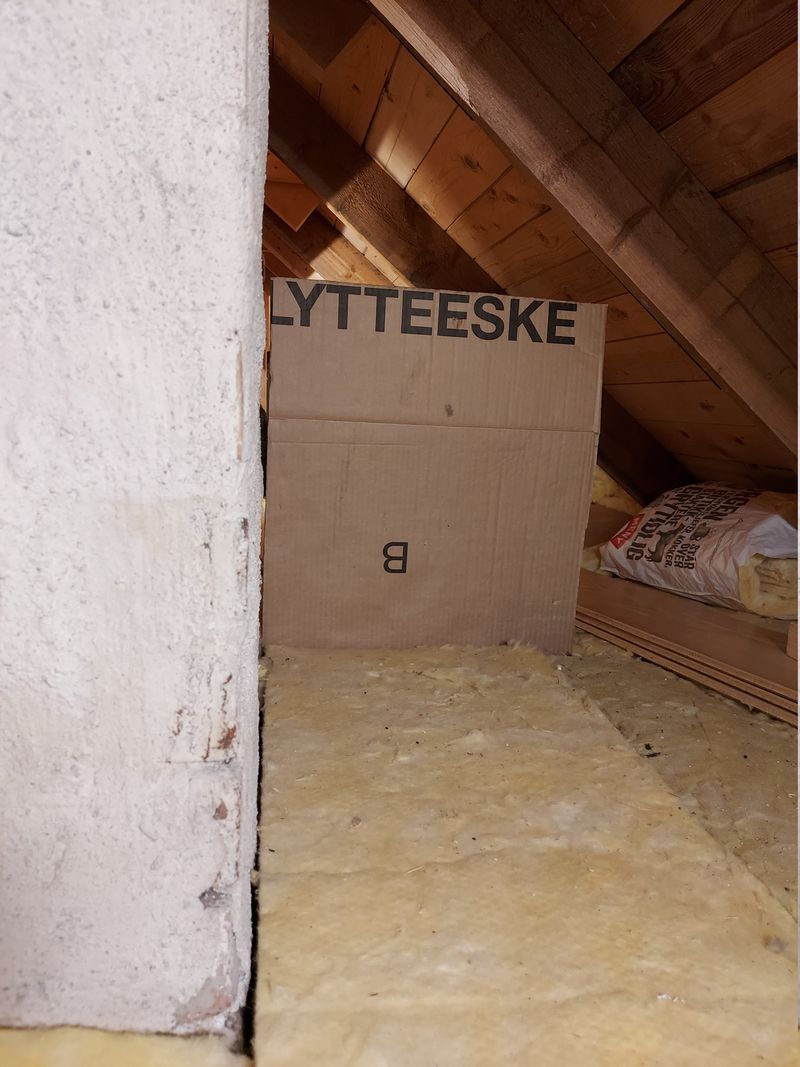

Cardboard cut-out of ventilation unit

One big question arose… Would the unit fit between the chimney and the rafters? We already knew it was possible to get it up the attic hatch, but it would be a tight squeeze getting it past the chimney.

Cardboard cut-out of ventilation unit

I cut out a cardboard template, with the same dimensions as the ventilation unit. It looked like it would fit… πŸ™‚

Attic floor, joists exposed

…But only if I removed a 2"3 plank I previously installed to raise the joists above the insulation, for the attic flooring.

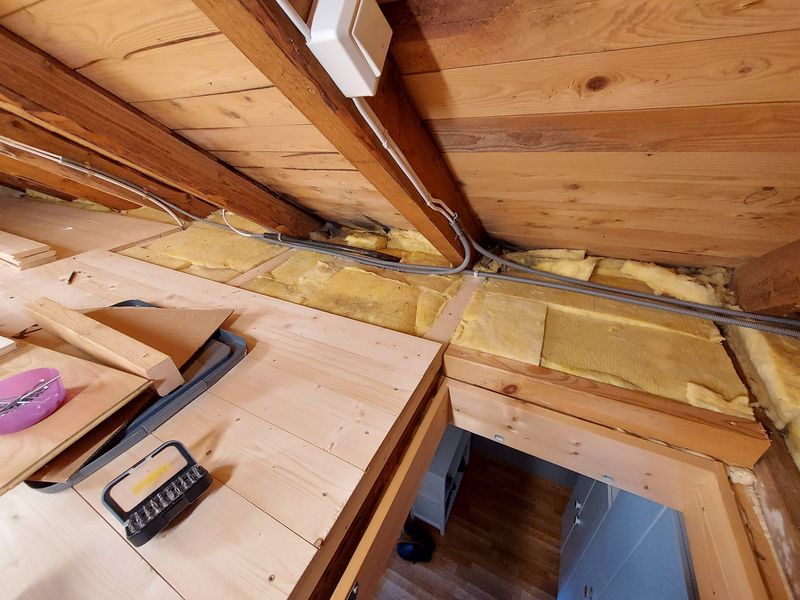

Floor boards removed on attic

Next I got started removing some of the previously installed floor boards, so make room for the ventilation ducks and vents.

Installation

Day 1

I must admit; the evening before the installation β€” I was pretty excited πŸ™‚

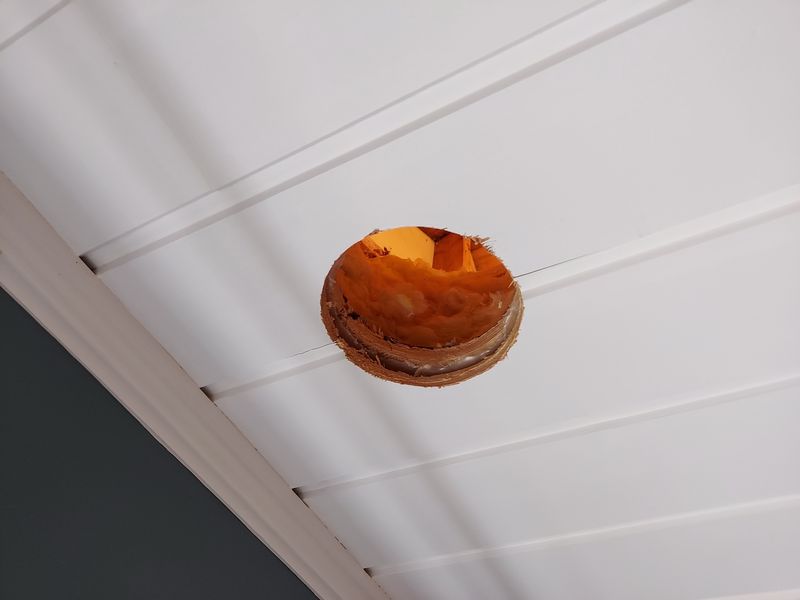

125 mm hole in ceiling

They got started making 125 mm holes in the ceiling, for the supply air vents.

125 mm hole in ceiling

A few places the ceiling paneling chipped a bit, but it was mostly covered up by the vents. We’ll touch up a bit with some paints β€” eventually πŸ™‚

125 mm hole in bathroom ceiling

The bathroom already had an opening, where the exhaust fan used to be. The cable and screw holes are visible.

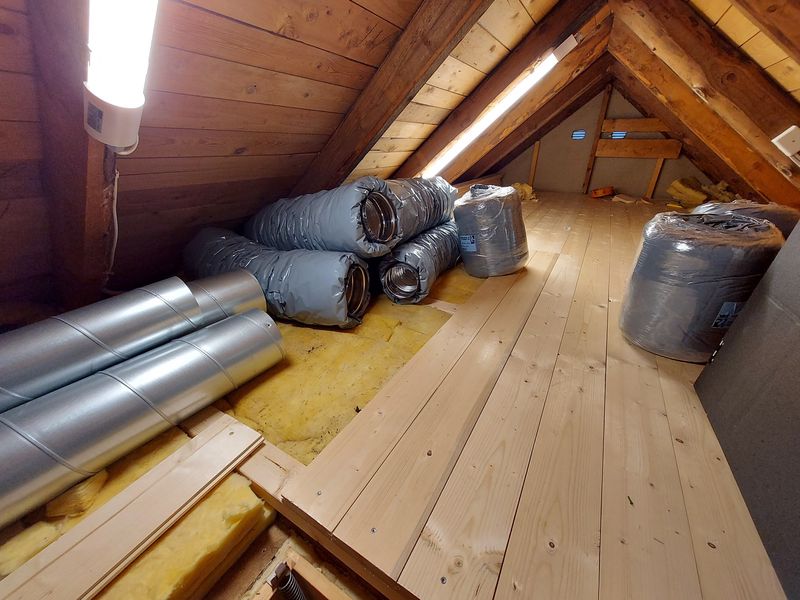

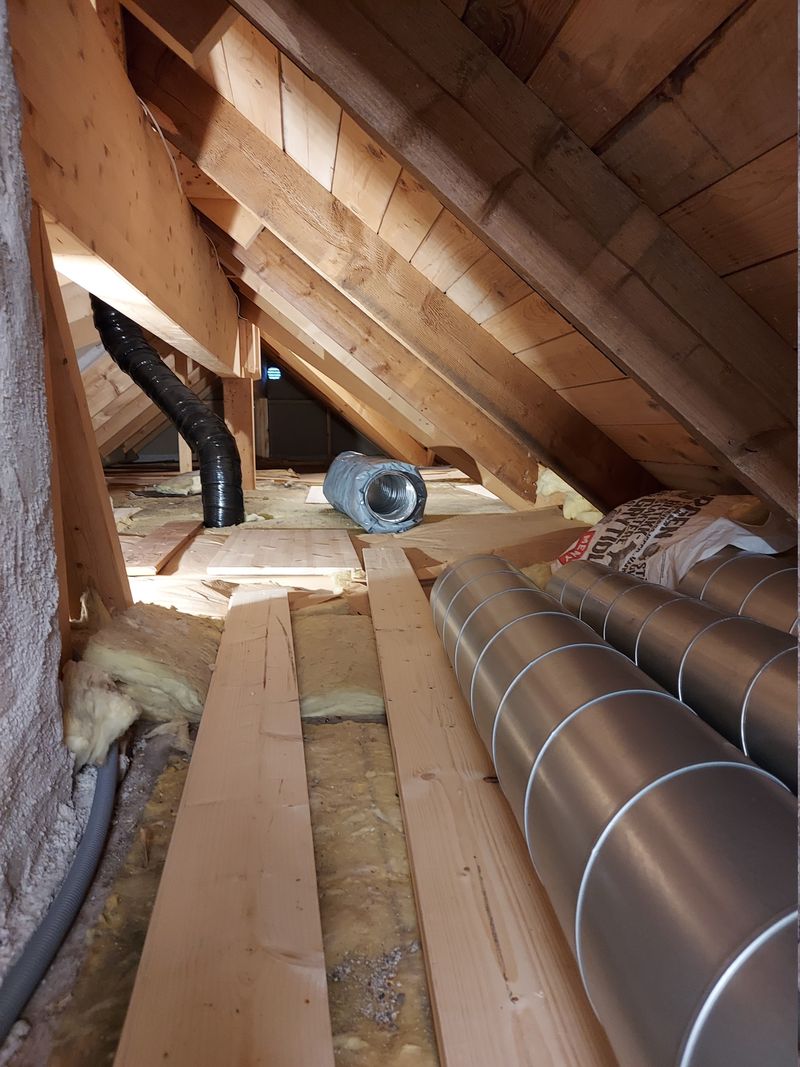

Spiral ducts and noise traps on attic
Spiral ducts and noise trap on attic

A lot of spiral ducts and ducting accessories, like noise traps, were carried up to the attic.

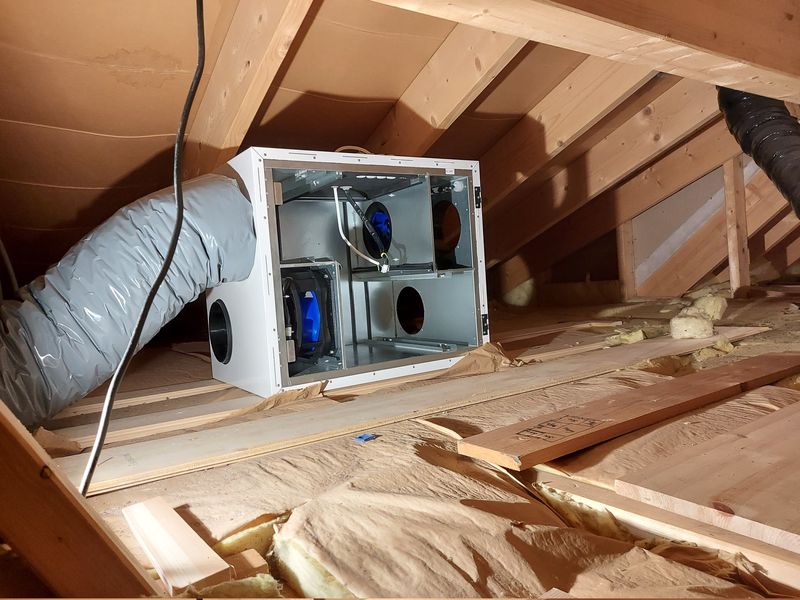

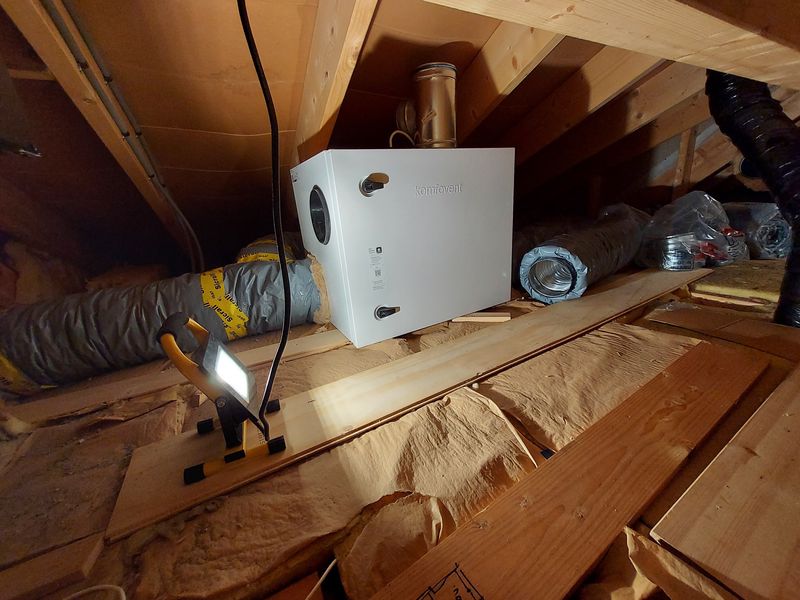

Ventilation unit being installed

The ventilation unit did in fact fit between the chimney and rafters πŸ™‚ It’s installed above the bathroom, as it is audible and not something you want above a bedroom (although it is very, very quiet).

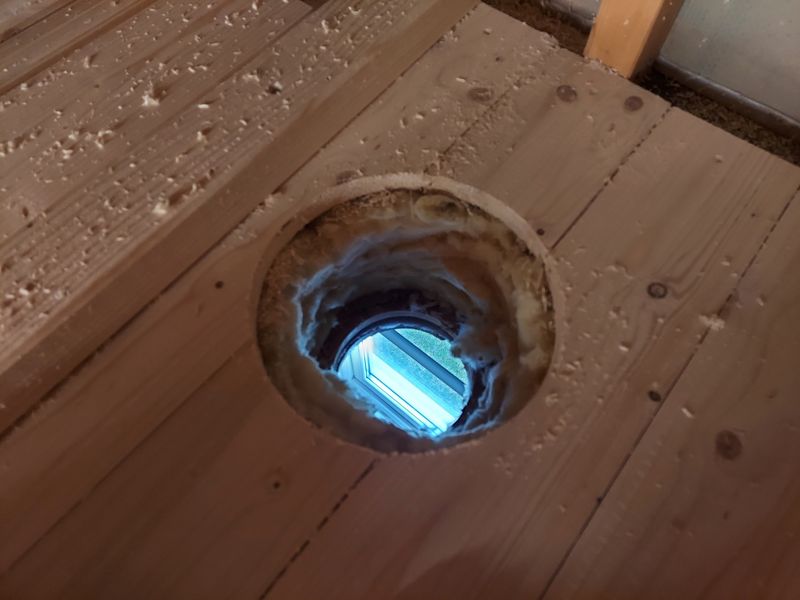

Hole in attic flooring

The hole drilling continues! This one going through the attic flooring, and into one of the kids' rooms.

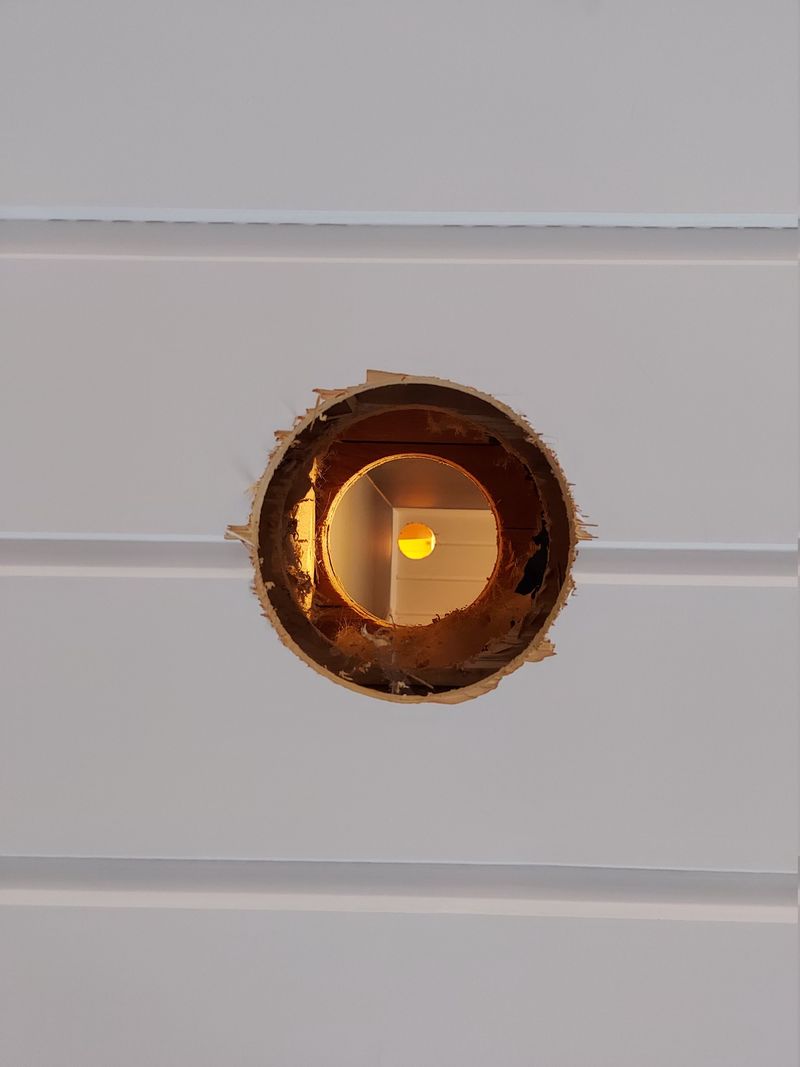

Hole in 1st floor living room ceiling

The most exciting/challenging duct; is the one going through the 2nd floor, and into the 1st floor living room. Here seen from below, all the way up to the attic πŸ™‚

Two 160 mm holes in gable wall

Two 160 mm holes were cut in the east facing gable wall, for the outside exhaust and supply air. The east wall is typically used because it’s in the shade most of the day.

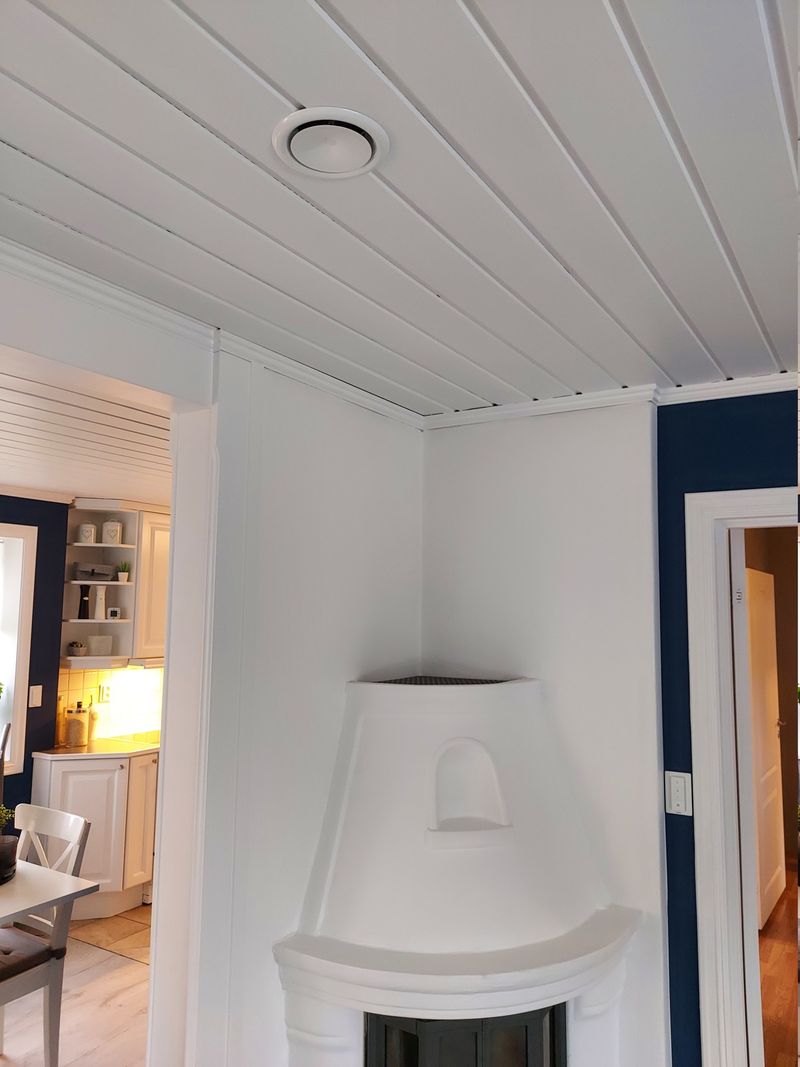

Vent installed in living room

Vent in 1st floor living room installed πŸ™‚

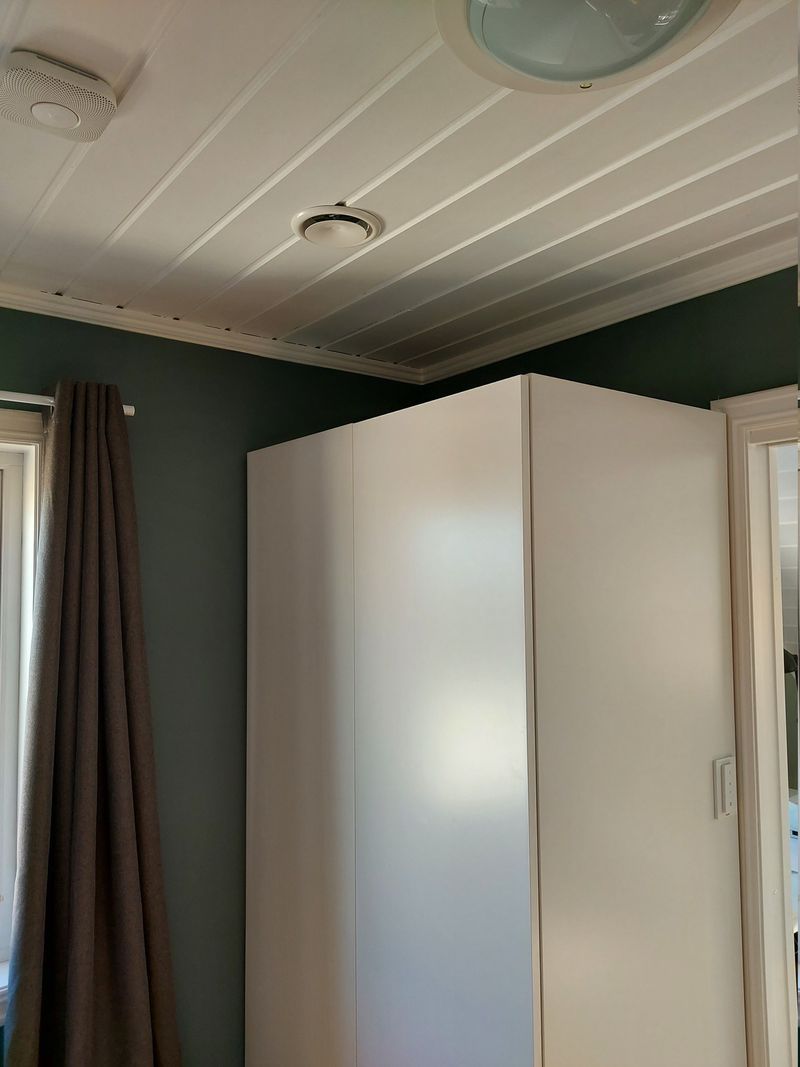

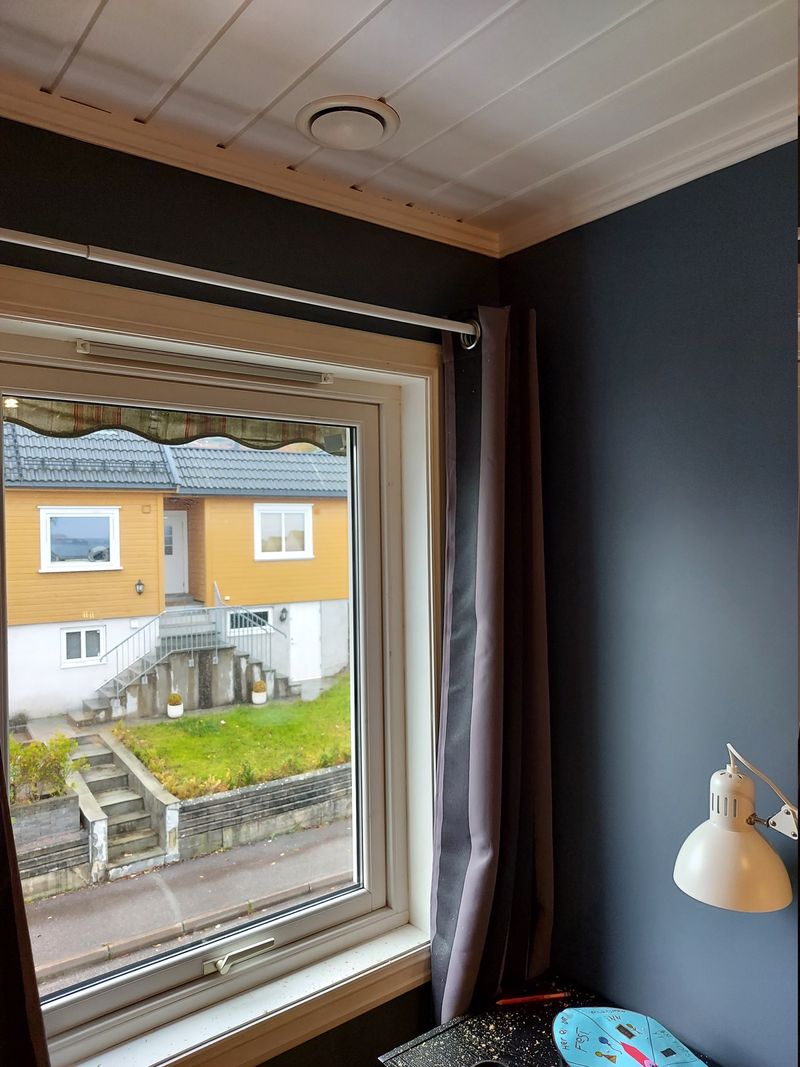

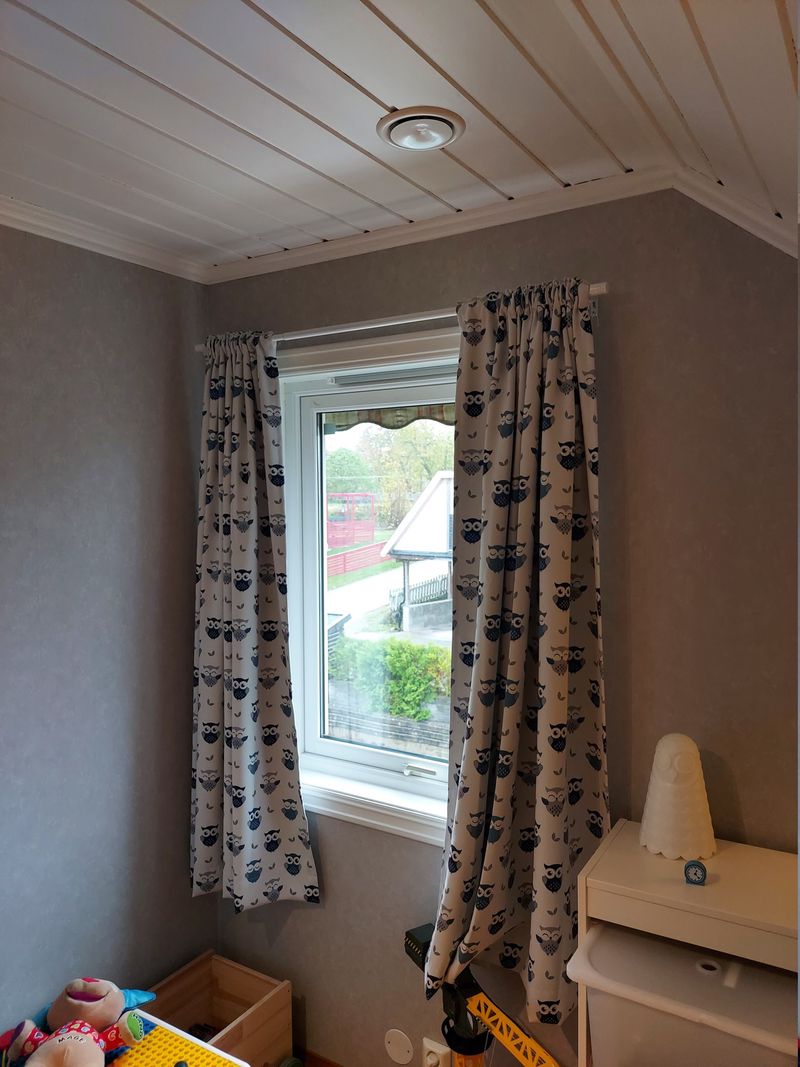

Vent installed in kids' room
Vent installed in kids' room

Vents in both kids' rooms also installed.

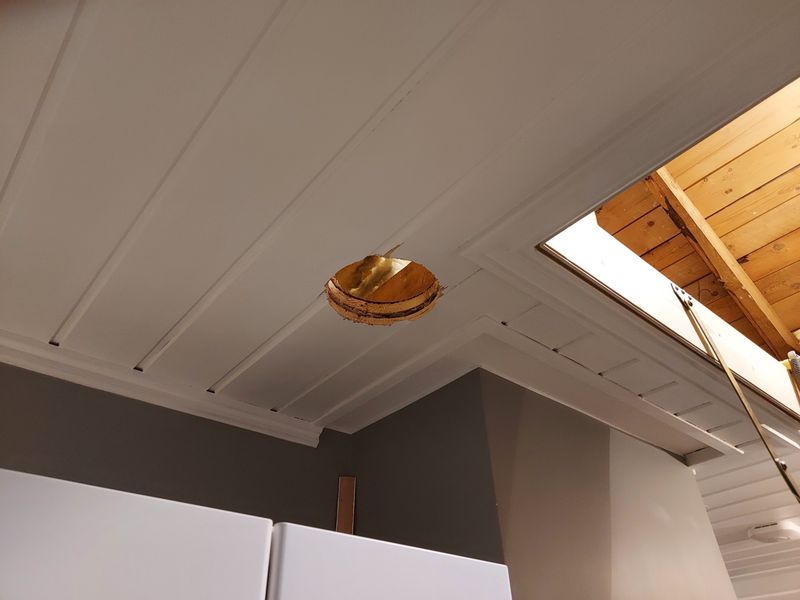

160 mm hole in 2nd floor hallway ceiling

Next; the main exhaust was cut, in the 2nd floor hallway. This will pull in air from the entire house.

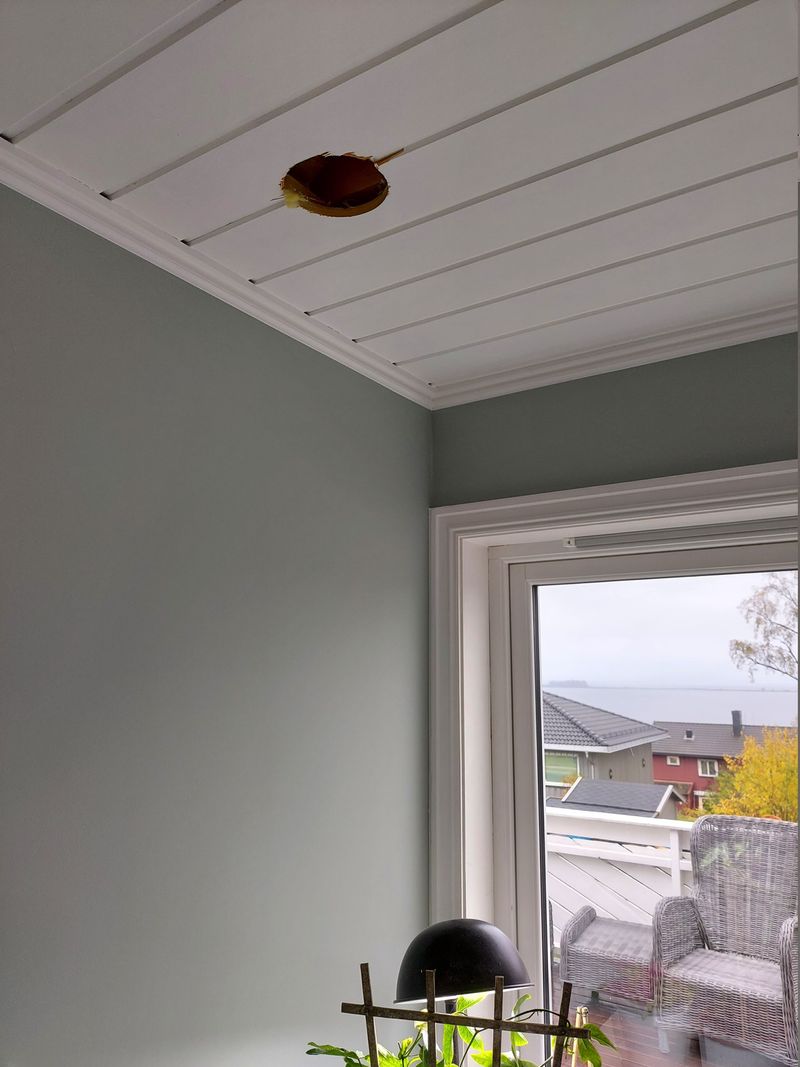

125 mm hole in 2nd floor den ceiling
125 mm hole in master bedroom ceiling

125 mm holes for supply air, in the 2nd floor den and master bedroom ceilings are cut next.

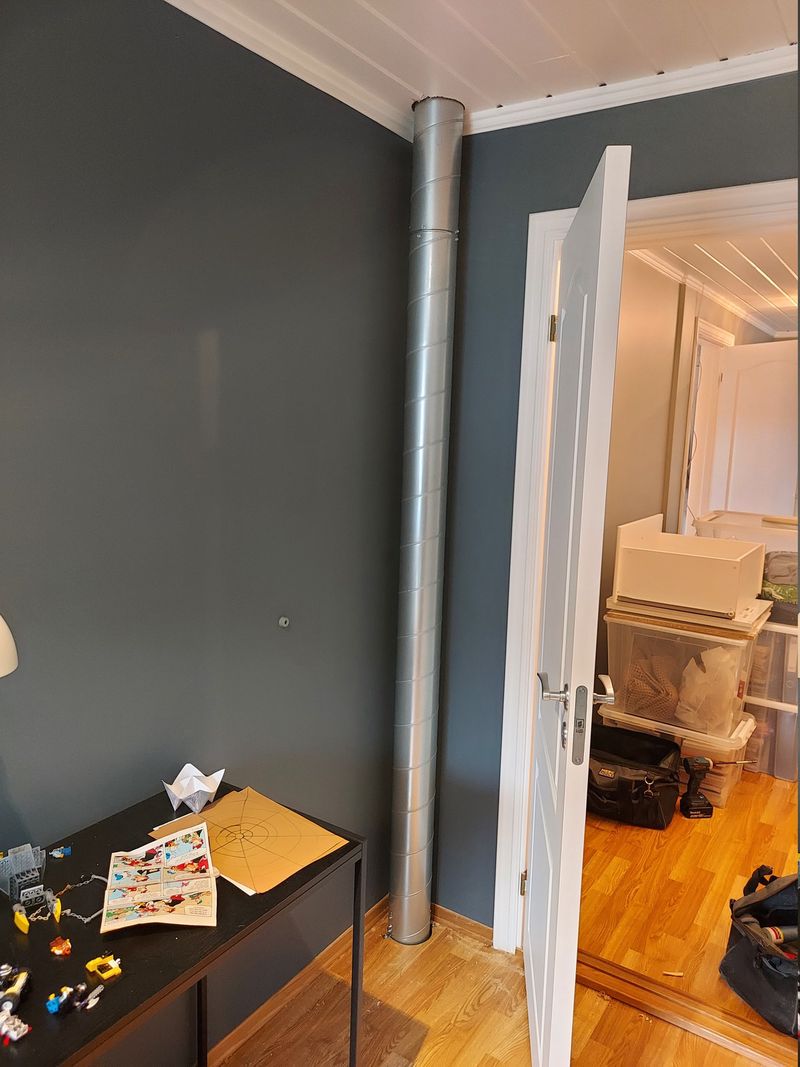

Duct going though kids' room

To get supply air to the 1st floor, we had to go though a kids' room on the 2nd floor. It’s behind the door, and the door can still be opened all the way. We’ll get this boxed in β€” at some point πŸ™‚

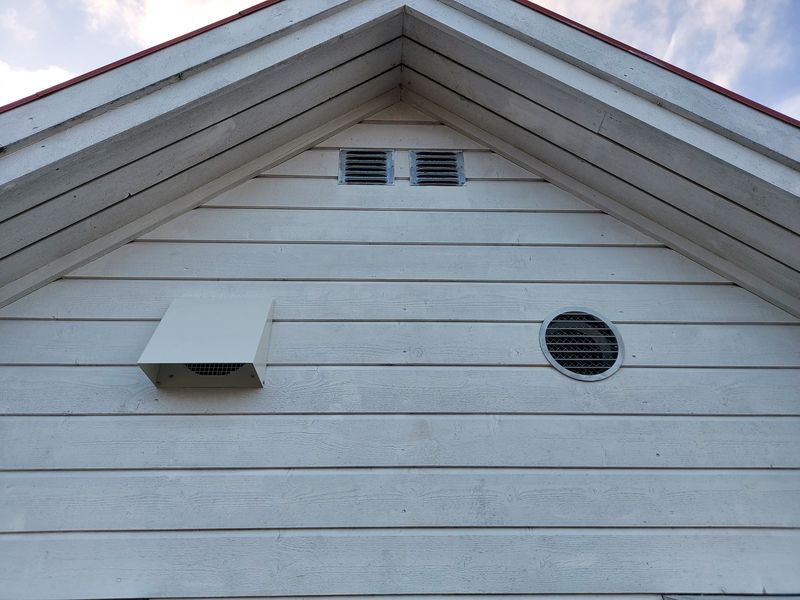

Air exhaust and supply, with cap and grid

A cap and grid was installed on the exterior air exhaust and supply.

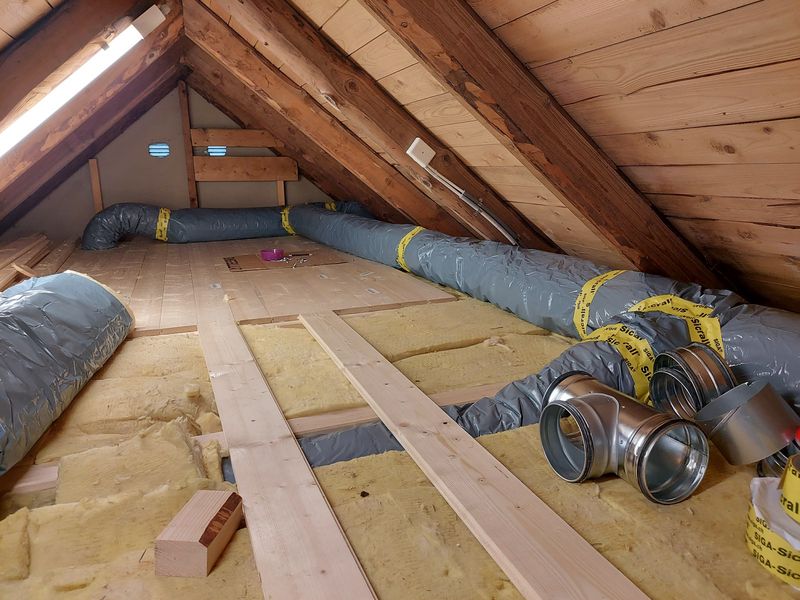

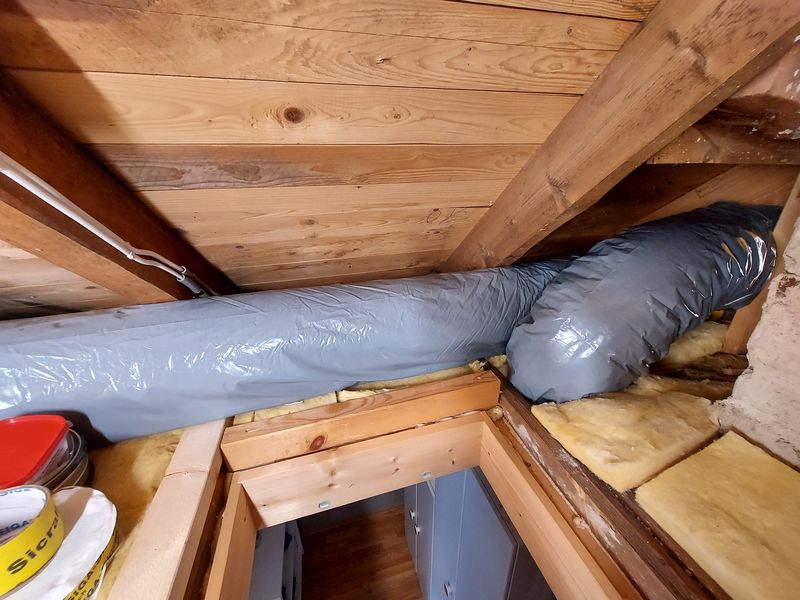

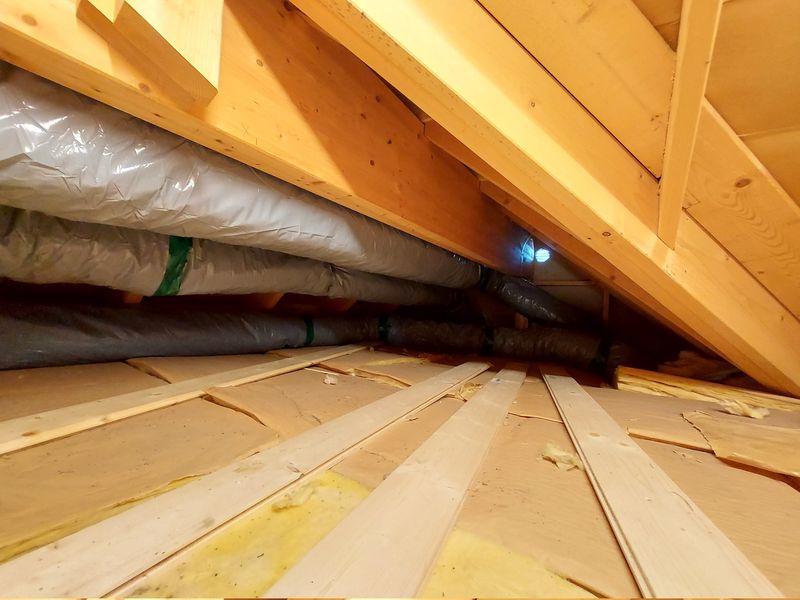

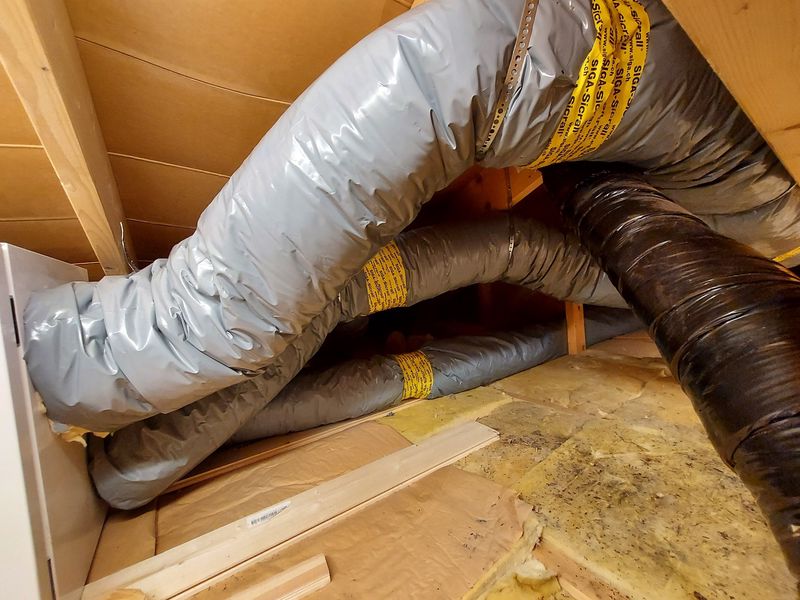

Insulated duct work on attic
Insulated duct work on attic
Ventilation unit and ducting accessories
Half-finished air exhaust and supply from outside

And that was day 1 of the installation πŸ™‚

My wife and I spent the evening fishing the control cable to the ventilation user panel β€” from the attic, and out a 16 mm hole in the 2nd floor hallway wall.

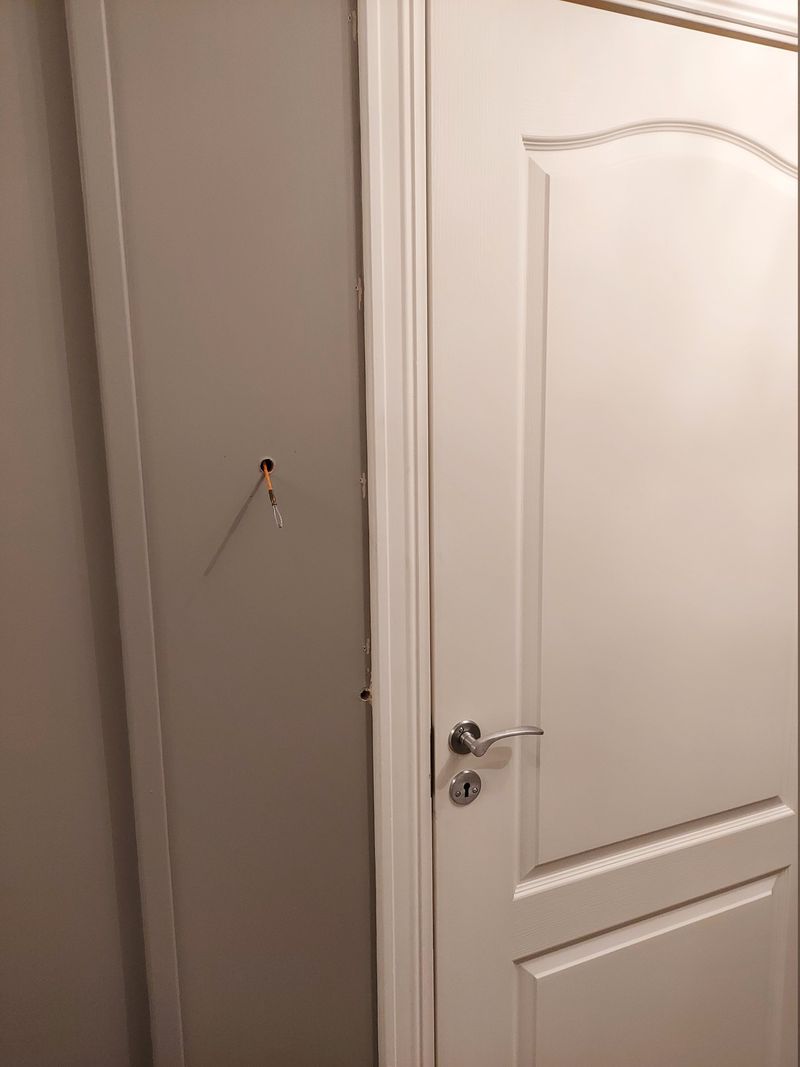

Hole in the 2nd floor hallway wall, fish tape sticking out

We were able to thread the fish tape from the attic, pull it out of the hole with a needle pliers, then attach a string and pull it back up. And lastly; attach the cable to the string and pull that back down πŸ™‚

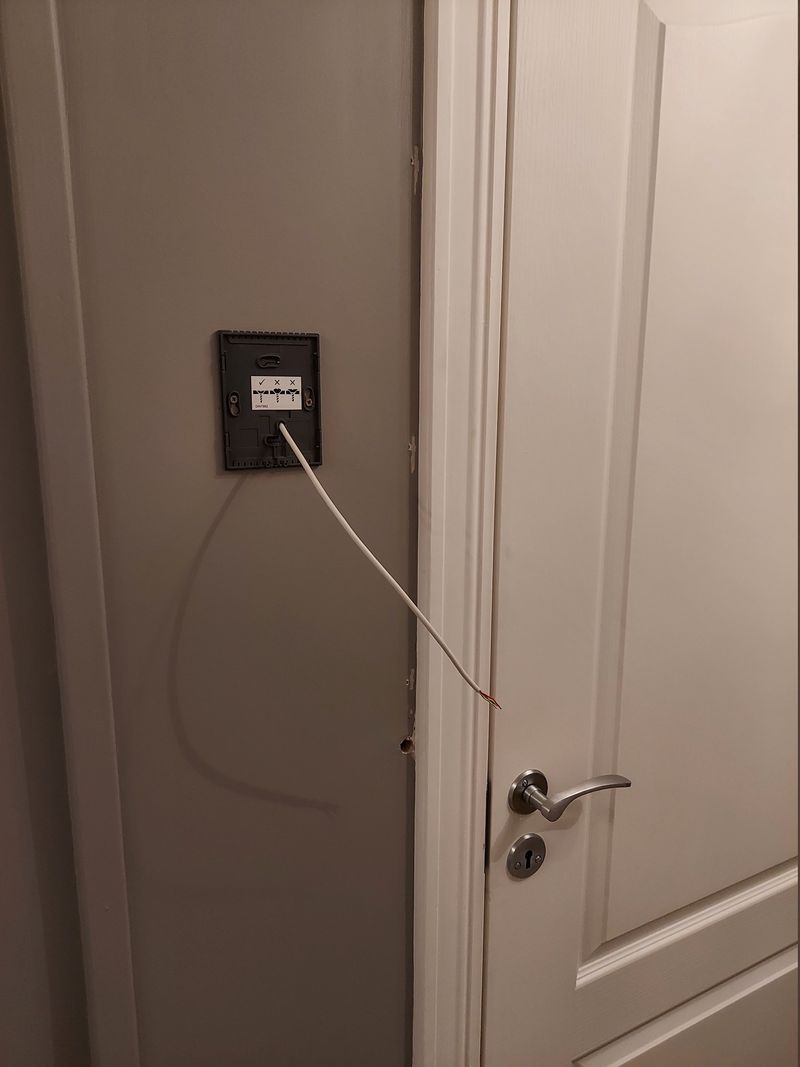

Ventilation user panel base plate installed

So much cleaner with no visible cables πŸ‘

Day 2

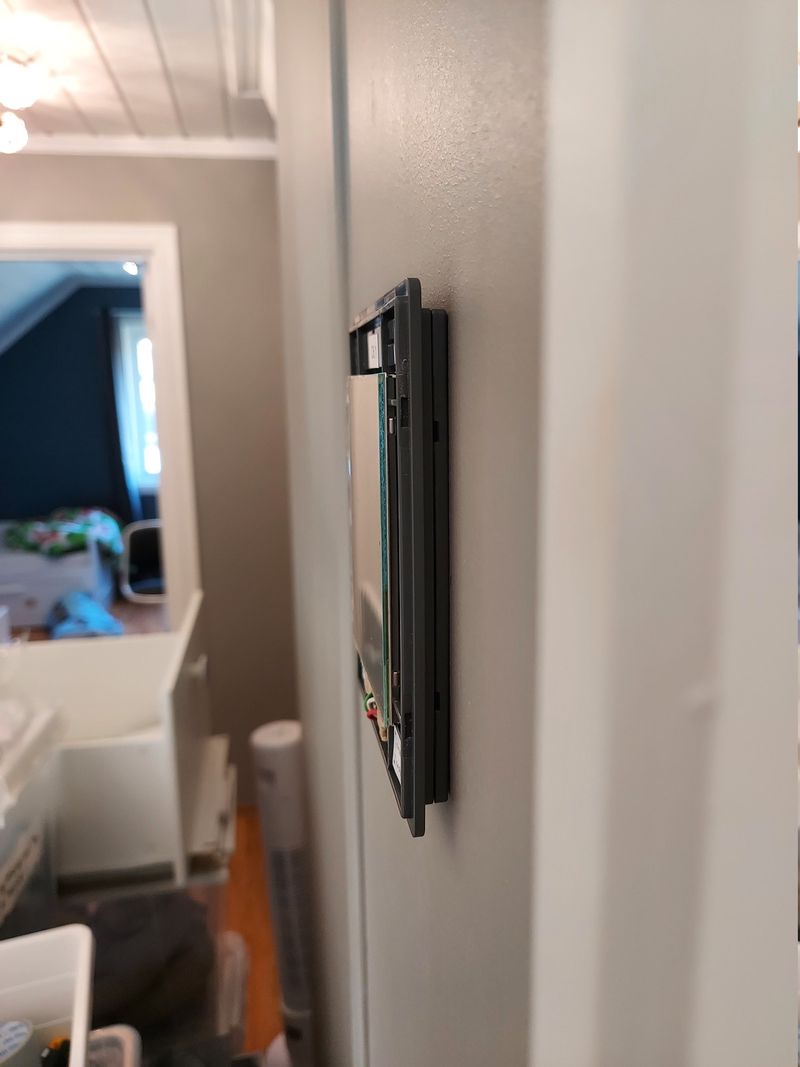

The Komfovent C6.1 touch panel is surprisingly slim

The C6.1 touch panel was installed in the 2nd floor hallway, next to the bathroom door. The panel is surprisingly slim, and looks really nice πŸ™‚

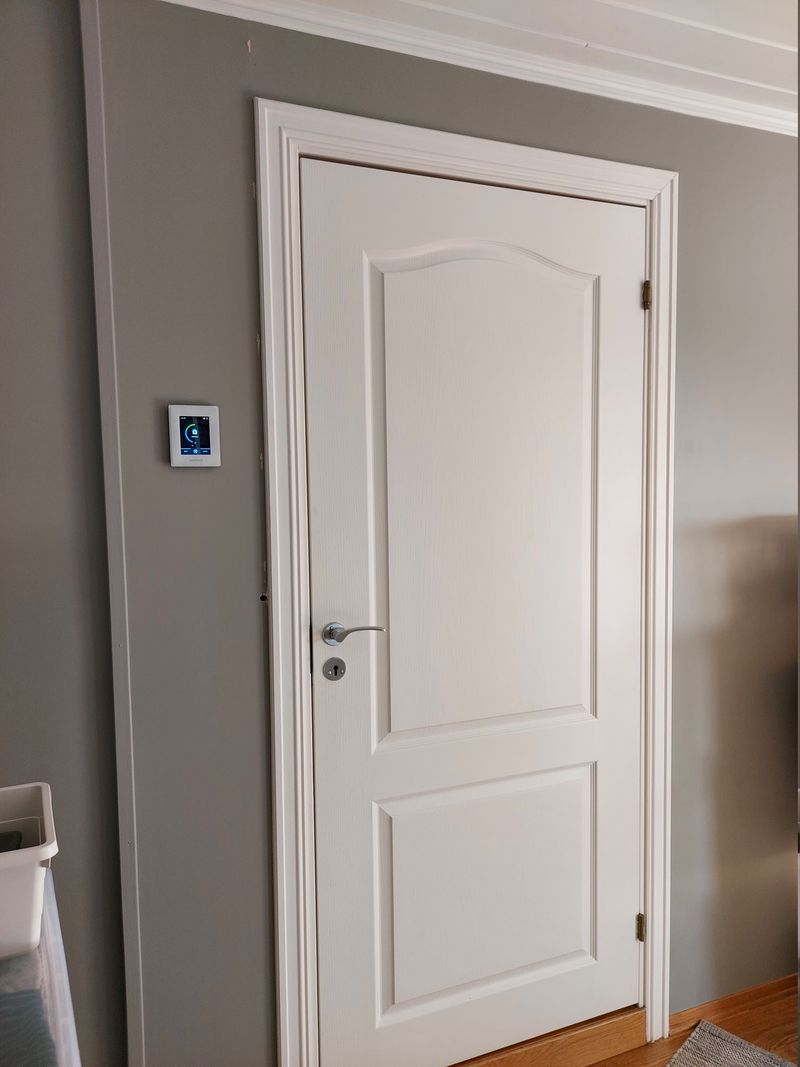

Touch panel, next to bathroom door

There are still some holes and markings on the wall from the bathroom fan cable that got removed. Need to fix that one day πŸ™‚

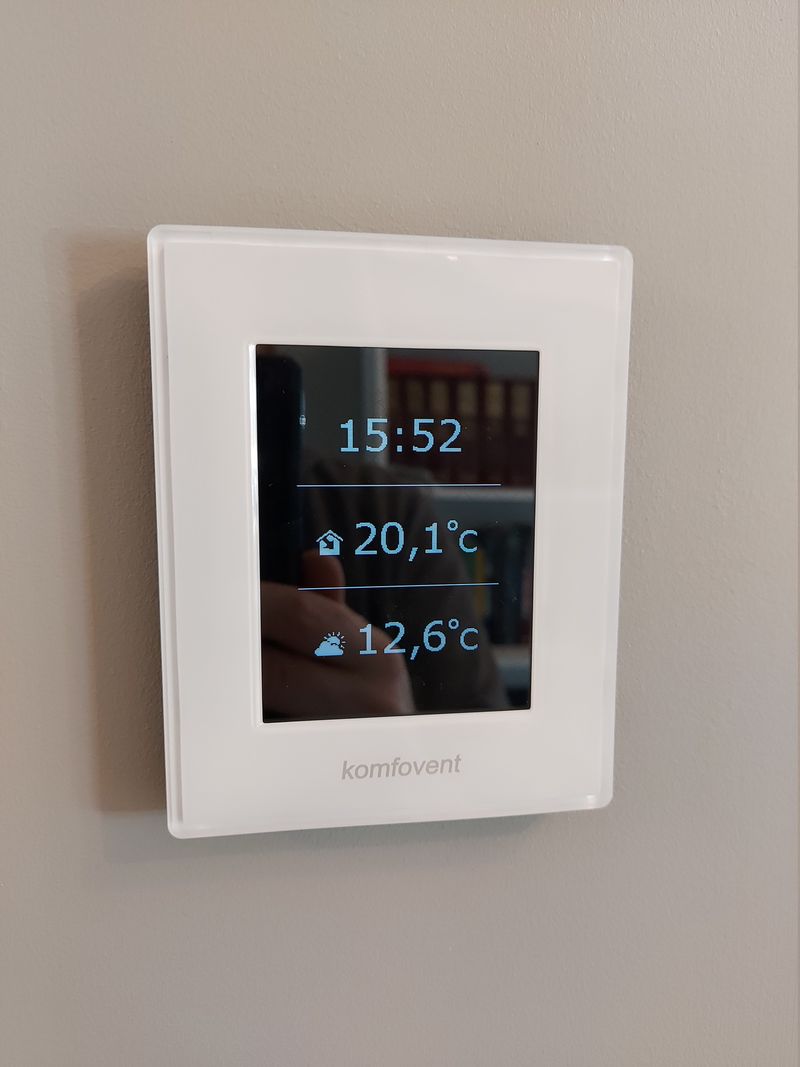

Panel screen saver; showing time, supply and outdoor temperature

I’ve configured the panel screen saver to show: time, supply air temperature, and outdoor temperature. Practical for choosing what kind of cloths the kids need that day πŸ™‚

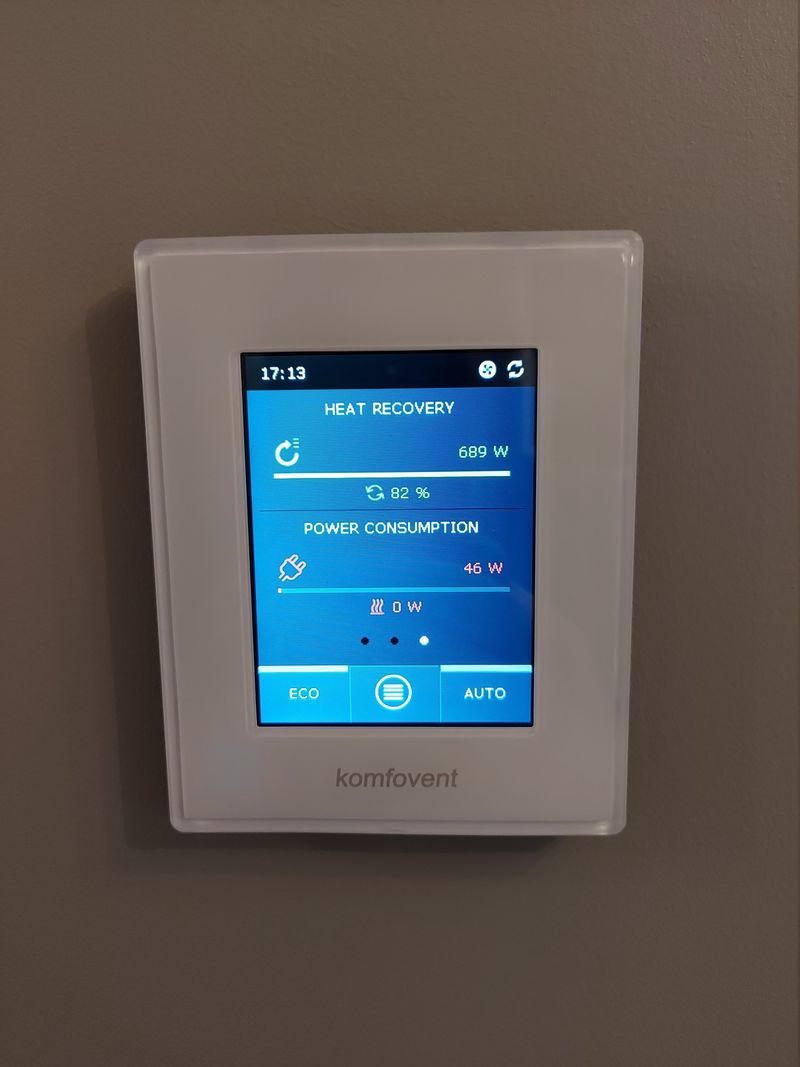

Panel showing heat recovery and power consumption

The ventilation system also have a detailed view of the heat recovery and power consumption. Perfect for a data geek like me!

160 mm exhaust in 2nd floor hallway

The 160 mm vent in the 2nd floor hallway ceiling is the main exhaust; pulling in air from the whole house.

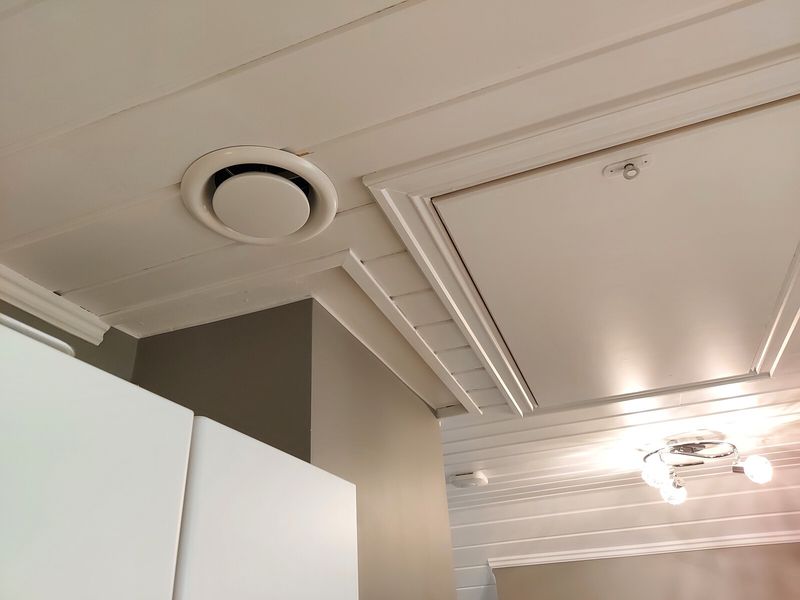

125 mm exhaust in bathroom ceiling

Unfortunately the vent in the bathroom ceiling didn’t quite cover up the screw holes from the old fan, so I need to revisit and fix that later.

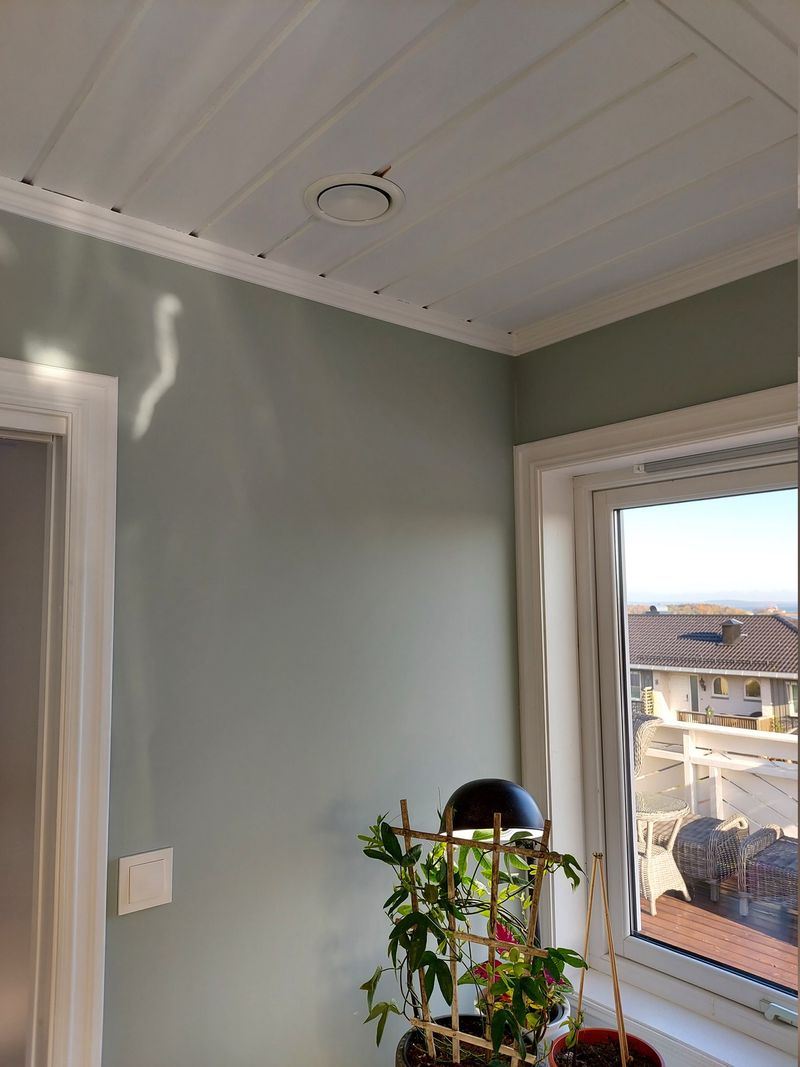

125 mm supply air in 2nd floor den
125 mm supply air in master bedroom

With all supply air vents on the 2nd floor located towards the exterior walls; they push air through the rooms β€” towards the main exhaust.

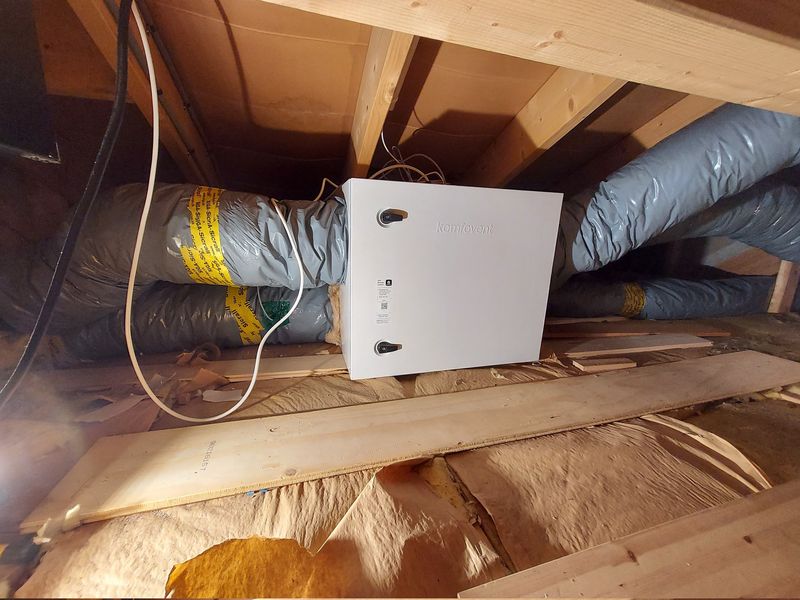

Ventilation unit in the attic
Ducts going into the ventilation unit
Ducts for room supply air and outside supply and exhaust

The last ducts where completed and connected to the ventilation unit. The system was powered up and all vents were tested and adjusted:

  • Air supply
    • Kids' room 1: 45 mΒ³/h
    • Kids' room 2: 39 mΒ³/h
    • 2nd floor den: 25 mΒ³/h
    • Master bedroom: 54 mΒ³/h
    • 1st floor living room: 48 mΒ³/h
  • Exhaust air
    • 2nd floor hallway: 115 mΒ³/h
    • Bathroom: 55 mΒ³/h

Results

Grafana graph, COβ‚‚ levels last 30 days

Looking at the COβ‚‚ levels for the last 30 days, with the start of the ventilation marked with the blue dotted line, it’s quite clear that it has a big impact on the air quality on both floors.

We’ve had above 1000 ppm COβ‚‚ level in the 1st floor living room on a few occasions; when the whole family is watching TV and burning candle lights. This could probably have been avoided by activating the Intensive mode.

Overall; we are very happy with the system. The air inside feels fresh, like having the windows open. No more stale air, and condensation on the windows in the morning πŸ‘

And an added bonus was that we got rid of the noisy bathroom fan, which was quite audible from the master bedroom. This system is only slightly audible in the bathroom. Dead quiet in all other rooms πŸ˜ƒ

Future plans

I have lots of ideas for interfacing the ventilation unit, it’s located right next to my attic network cabinet and supports Modbus TCP/IP. So I’m planning on adding it to Home Assistant.

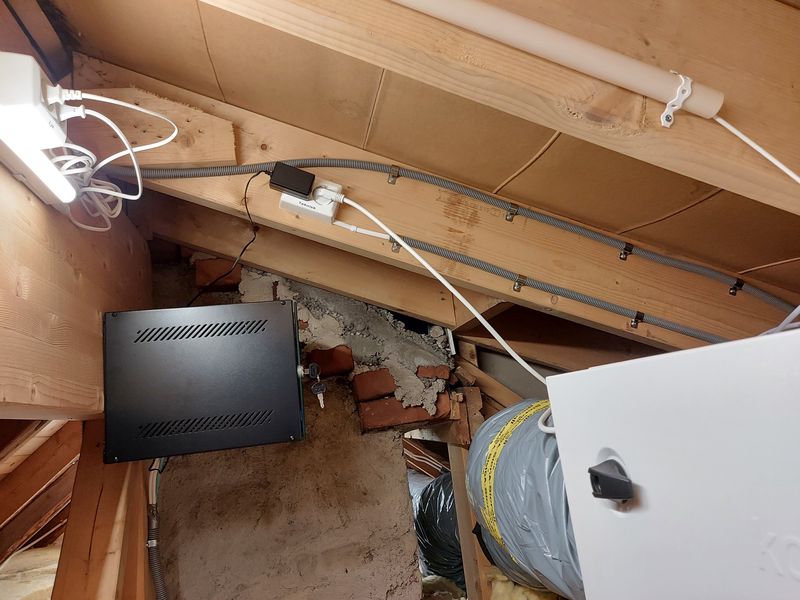

Ventilation unit in the attic, next to network cabinet

That would allow me do do things like:

  • Change mode to Cooking when the kitchen ventilator is running
  • Change mode to Fireplace with a wireless Zigbee button in the living room
  • Change mode to Intensive if high COβ‚‚ levels are detected
  • Change mode to Away when the house if empty
  • Pull out data for use in Grafana or our Dakboard digital calendar

I also want to add a few more vents on the 1st floor, I’ll have to do some measurements to see what’s possible πŸ™‚
