AVR is a series of microcontrollers from Atmel. Fitted with A/D converters, comparators, timers, interrupts, internal oscillator, and more. Flash memory is used for the main program, SDRAM for variables and EEPROM for values that need to be saved through a power loss. Cheap, fast and easy make them perfect for home automation projects.

Speeds up to 20 Mhz, USART (e.g., RS-232, RS-485) and low power consumption are some other benefits. A starting kit such as the STK500 is a good basis, with this you can test and program a variety of devices.

Table of contents

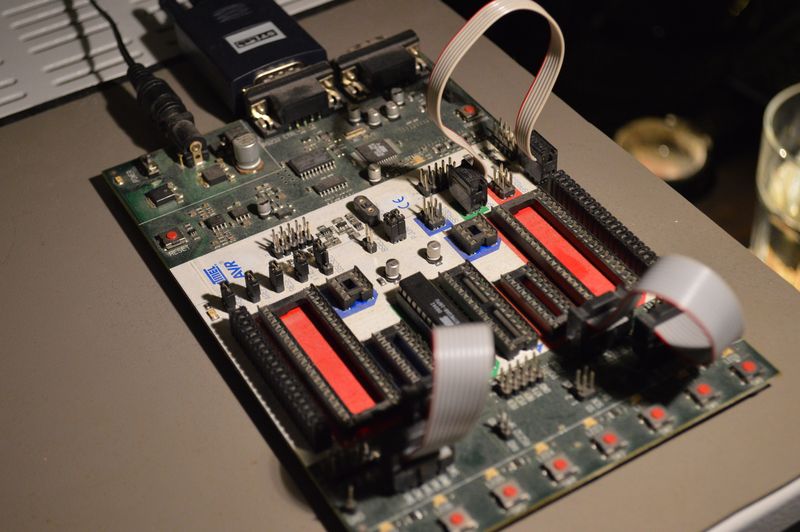

AVR STK500 programming and development board

Getting started


There are a lot of different IDEs and compilers available, here is a few of them:


These are some of the devices I most commonly use, for the complete list see Atmels device list:

  • ATmega8
  • ATmega8515
  • ATtiny15
  • ATtiny2313
  • ATtiny26

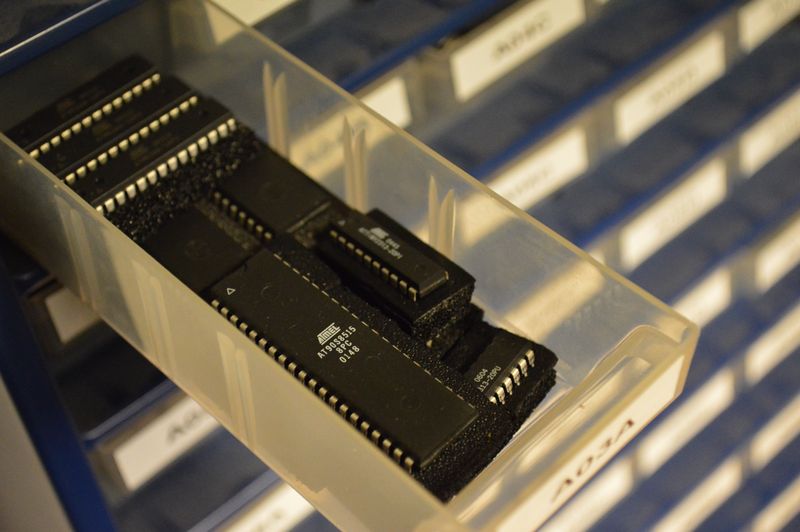

AVR microcontrollers in small parts drawer

Basic circuit

AVR circuit with inputs and outputs

This basic circuit has 7 inputs and 8 outputs and uses an ATtiny2313 with internal oscillator. That is the maximum capacity for this device if you don’t count PA.0, PA.1, and PA.2, which is typically used for a crystal oscillator and a reset switch.

Try placing C1 and C2 as close to the device as you can; this might improve the stability of the power supply; which is a good thing.


Voltage regulator schematics

Most AVR microcontrollers run on 5 volts, which you can easily get by using a voltage regulator and a couple of capacitors. I usually use 47 µF for C1 and C2. A voltage regulator like the L78S05CV can deliver 2 amps and have a maximum input voltage of 35 volts. Remember to mount a heat-sink, especially with high input voltage or high load.

External crystal

AVR microcontroller schematics, with oscillator, reset switch and smoothing capacitors

If you are going to use an external crystal oscillator, it must be connected between XTAL1 and XTAL2 with a 22pF capacitor to GND on both sides. Remember to set the fuse bits according to your oscillator, and if you are going to use serial communication; pick a frequency that works with your baud rate.


Digital inputs

Schematics of digital input with pull-up resistor

If your input has a pull-up resistor, it is pulled high when not active. So you need to pull it down (low) to trigger it, meaning that it is triggered by ground. Note that this also inverts your inputs, so you need to handle that in your programming.

Schematics of digital input with pull-down resistor

When your input has a pull-down resistor, it is pulled low when not active and you activate it by pulling it up (high).

Analog inputs

Analog inputs don’t require pull-ups or pull-downs, they measure the input voltage. The value of the input is relative to the AREF (analog reference) pin, meaning that if this pin has 5 volts, and your input has 2.5 volts, you will get a value of 512 (half of 1023, which is the maximum of a 10 bit ADC). Remember to power the ADC by connecting it’s AVCC and GND pins to power.

To measure higher voltages than the input can handle; you can use a voltage divider, this divides the voltage down by using two resistors. And for restive sensors, you can use a Wheatstone bridge.

Digital outputs

Schematics of digital output, with single NPN transistor

You can power an LED (20 mA) of the AVR output without any additional components, but any more than that and it’s going to need some help. For this we use transistors, a bipolar NPN transistor is a good choice. You need a resistor on the base pin; otherwise too much current passes through the transistor, and it will break.

Schematics of digital output with NPN and PNP transistors

If you are going to drive some heavy stuff, a small bipolar transistor is not going to be enough. You need a power transistor, but these do not have the same amount of amplification, so it’s a good idea to place it after your small bipolar transistor.

PWM outputs can be connected the same way.



LED pinout

You will pretty much always need a resistor when powering LEDs. Here is a useful tool for calculating the value of that resistor: LED Resistor Calculator.

Useful reading


Transistor pinout and symbols

Useful reading


Relay circuit with transistor and protection diode

When connecting a relay to a digital output, it must have a protection diode; this prevents a power surge from flowing back into the input when the relay releases. This surge can cause the microcontroller to restart; it may even break the output.


Diode pinout and symbol

Electricity only flows one way through a diode, remember that it also has a voltage drop in the forward direction.

Useful reading


Getting your AVR device to communicate over a serial line opens up a whole new world of opportunities, and is totally badass! However; to do that we need some additional components to get our signal levels right. I’ve added a simple schematic for RS-232 (standard computer serial port) and RS-485 (multidrop communication over long wire spans).


Schematics of TTL to RS-232, with MAX232 IC

With this, you can communicate with your AVR device from your computer using the serial port, which is cool.


Schematics of TTL to RS-485, with MAX485 IC

Now; with this, you can build a whole network of AVR devices operating on the RS-485 network, very cool! You will need to handle the addressing in your application though.

Now you are ready for some serious AVR projects! 🙂
