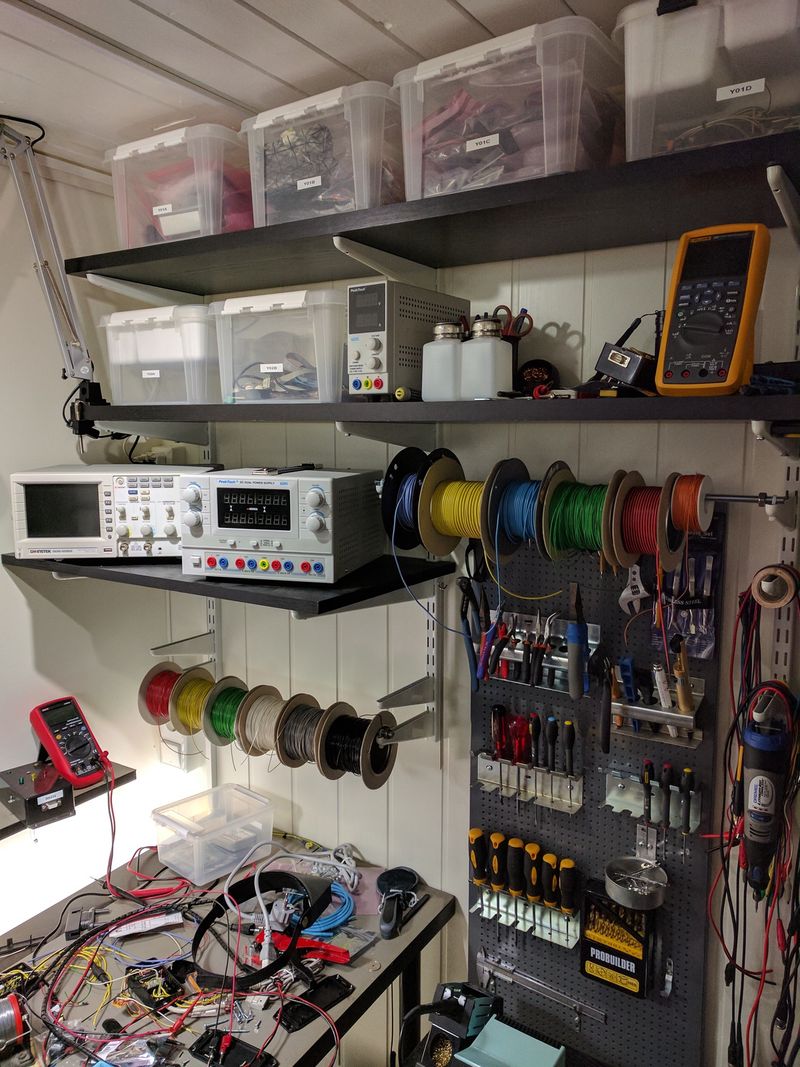

I really love the shelf rail system I have on the wall by the electronics lab; it distributes the load evenly over a large surface, and it’s incredibly easy to move things around and try out different solutions. By squeezing some of the existing shelves a bit closer and moving the wire rolls; I was able to fit yet another shelf 🙂
![](https://blog.cavelab.dev/2017/11/bench-power-supply-another-shelf/IMG_20170809_072438_hu19900413bc5cd60ef858923f1dd374af_761205_800x0_resize_q80_lanczos.jpg)

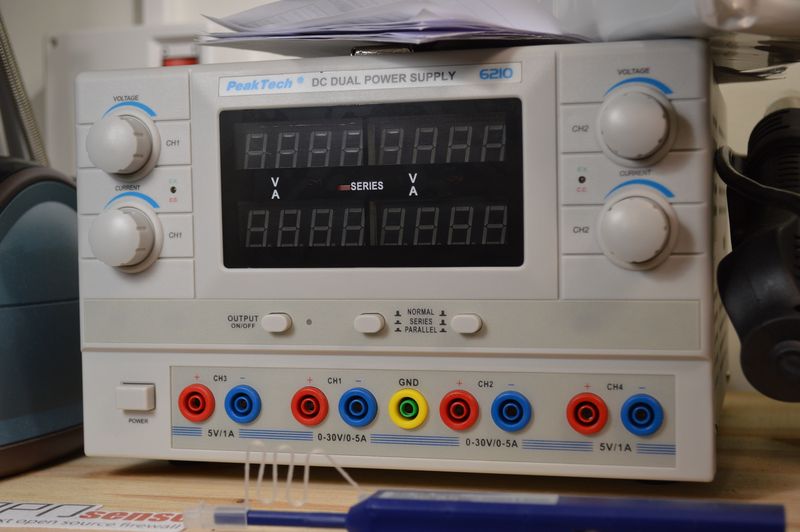

I moved my small switch power bench supply down onto the new shelf; I was able to free up enough space next to the oscilloscope to place my new linear three channel bench power supply 😃 It has two variable outputs; 0-30V 5A and a fixed 5V 3A output.
![](https://blog.cavelab.dev/2017/11/bench-power-supply-another-shelf/cover_hub7063020e1b396d9307632f5913f5c23_645125_800x0_resize_q80_lanczos.jpg)
It also has an output on/off switch, switching only the outputs on and off but keeping the power supply powered. That is one feature I miss on my PeakTech 6225. Because it is linear and not switch powered it is a lot bigger and heavier.
My next equipment purchase for the electronics lab is going to be a microscope; I’ve wanted that for a very long time…
